Product Overview

Reinforced Composite Membrane is a high-strength material combining HDPE geomembrane with reinforced layers, such as woven geotextiles or mesh. This advanced design enhances the product's tensile strength, puncture resistance, and durability, making it ideal for demanding applications like landfill liners, reservoirs, and slope protection. It is widely used in environmental protection, hydraulic engineering, and infrastructure construction.

Product Features

• High-Strength Reinforcement: Embedded with reinforced layers, offering superior tensile strength and resistance to punctures and tearing.
• Exceptional Impermeability: Provides a watertight barrier, preventing seepage in various containment applications.
• Chemical Resistance: Resistant to acids, alkalis, and other chemicals, ensuring long-term performance in harsh environments.
• UV and Weather Resistance: Designed to withstand prolonged exposure to sunlight and extreme weather conditions.
• Durability: Suitable for heavy-duty applications, ensuring long service life even under mechanical stress.
• Eco-Friendly Material: Made from non-toxic and environmentally safe materials, ensuring compliance with global environmental standards.

Product Specifications

• Material: HDPE Geomembrane + Reinforced Layers (Woven Geotextile or Mesh)
• Thickness Range: 0.5 mm to 3.0 mm (Customizable based on project requirements)
• Reinforcement Strength: Up to 40 kN/m (Depending on reinforcement type)
• Width: Up to 6 meters (Customizable)
• Length: 50-200 meters (Varies with application needs)
• Color: Black (Standard), with other colors available upon request
• Compliance: Meets ASTM, ISO, and GB standards for impermeability and durability

Application Areas

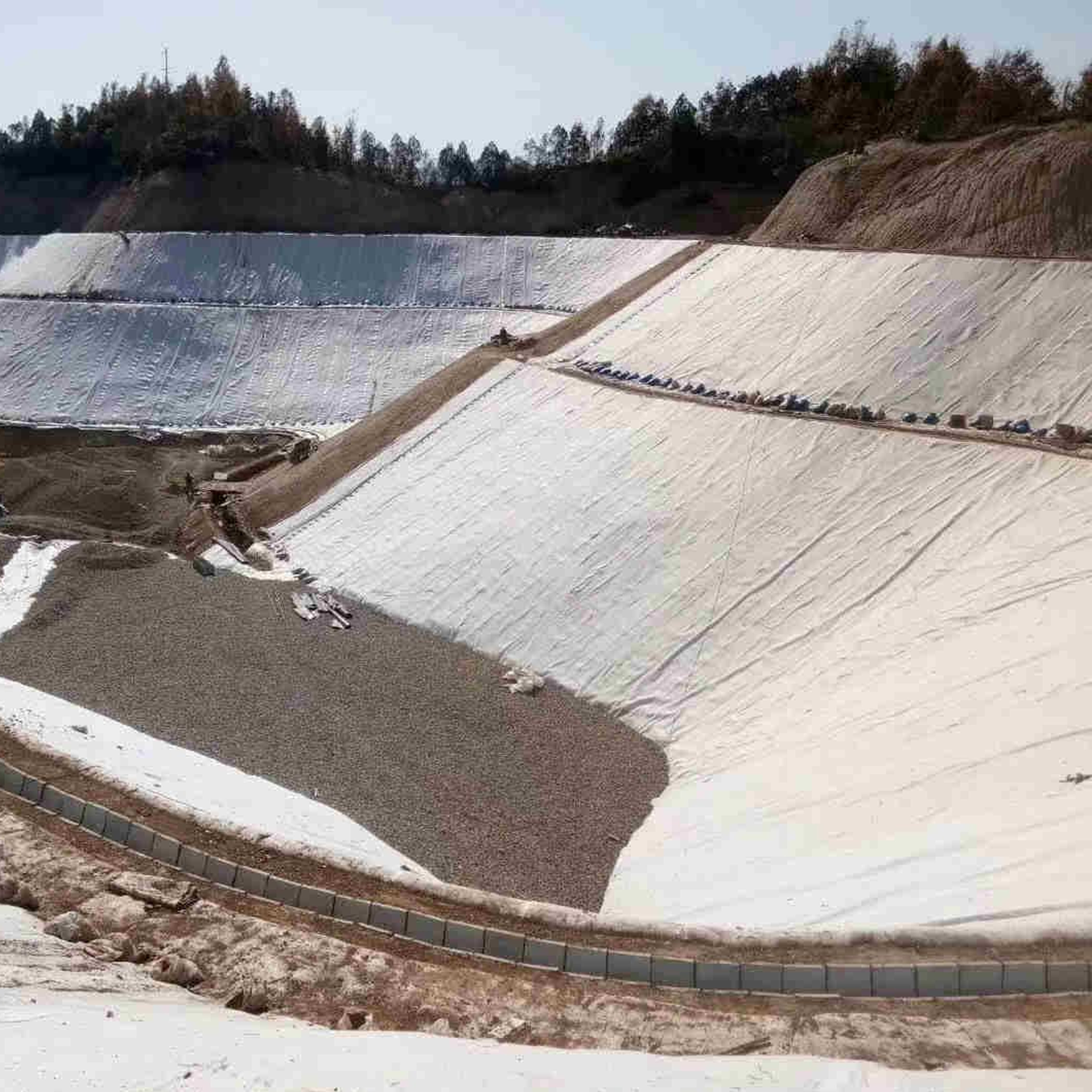

• Landfills: Acts as a liner or cover in landfill containment systems to prevent leachate leakage.
• Reservoirs and Canals: Provides waterproofing and structural stability for water storage and conveyance systems.
• Road and Railway Construction: Reinforces roadbeds and embankments, improving stability and preventing erosion.
• Slope Protection: Prevents soil erosion on slopes, retaining walls, and embankments.
• Mining and Industrial Waste Containment: Ensures safe containment of hazardous materials and wastewater.
• Agricultural Applications: Used in irrigation systems and ponds for water conservation and soil protection.

Installation Recommendations

1. Surface Preparation: Ensure the installation surface is smooth, compacted, and free of debris to avoid punctures.
2. Membrane Deployment: Unroll the reinforced composite membrane across the prepared surface, ensuring proper alignment and tension.
3. Seam Welding: Use hot wedge or extrusion welding methods to bond seams securely, ensuring watertight integrity.
4. Anchoring: Secure the membrane in trenches or with weights to prevent displacement during operation.
5. Inspection and Testing: Perform quality checks using non-destructive methods like air pressure or vacuum tests to ensure seam integrity.
6. Protective Covering: Cover the membrane with soil, gravel, or other materials to prevent UV exposure and physical damage.
