Product Overview

Short Fiber Composite Geomembrane is a combination of high-density polyethylene (HDPE) geomembrane and short fiber non-woven geotextile. This advanced product integrates waterproofing and soil reinforcement properties, offering exceptional strength, durability, and chemical resistance. It is widely used in environmental engineering, water conservation, road construction, and agricultural applications.

Product Features

• Excellent Impermeability: Combines a geomembrane layer for superior waterproofing, preventing water seepage and soil erosion.
• High Tensile Strength: Reinforced with short fiber geotextile for added durability and soil stabilization.
• Chemical Resistance: Resistant to various chemicals, including acids, alkalis, and organic substances.
• UV and Weather Resistance: Designed to withstand harsh weather conditions and prolonged sunlight exposure.
• Eco-Friendly Material: Manufactured using non-toxic materials, safe for environmental applications.

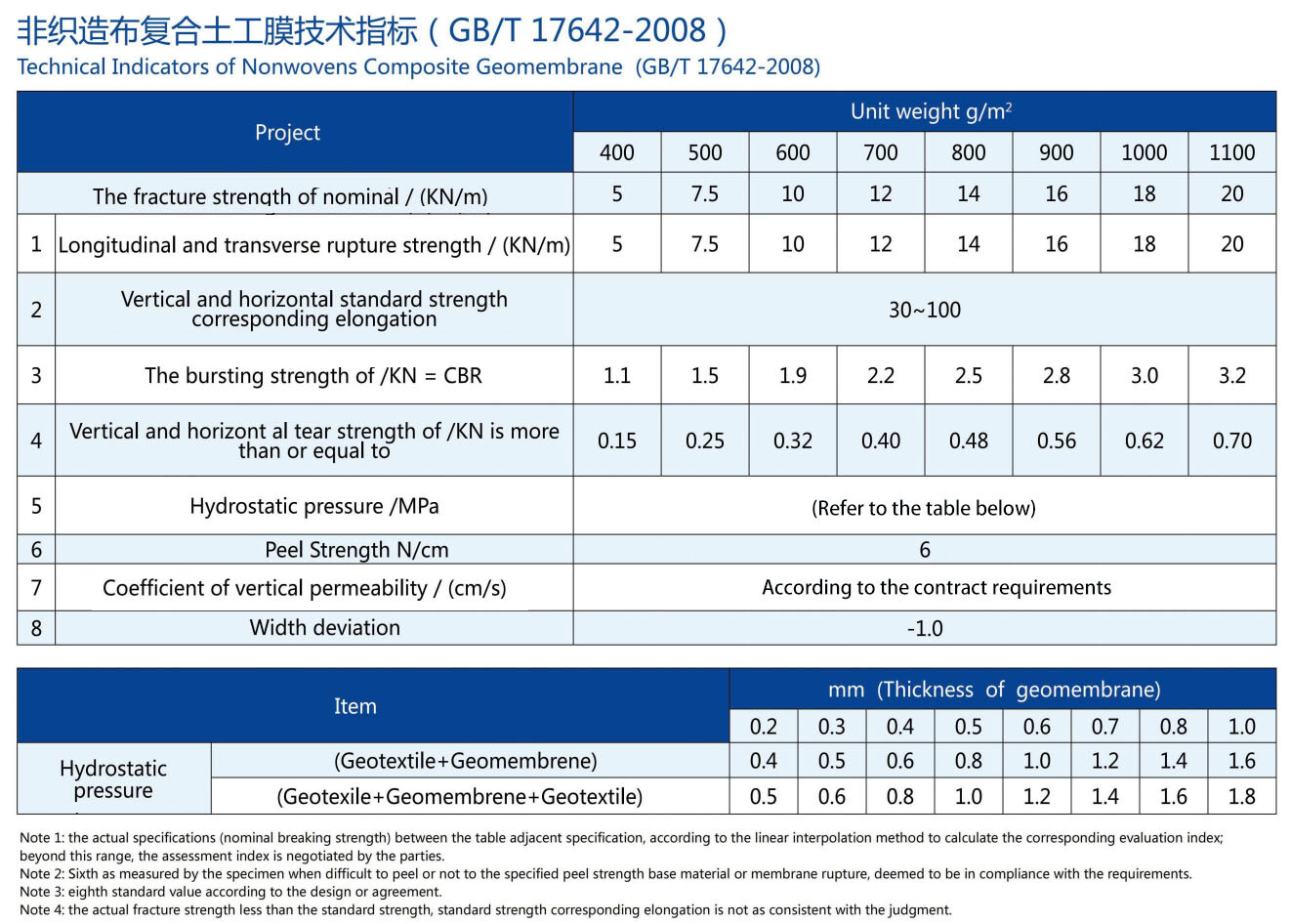

Product Specifications

• Material: HDPE Geomembrane + Short Fiber Non-Woven Geotextile
• Thickness Range: 0.3 mm to 2.0 mm (Customizable based on application requirements)
• Geotextile Weight: 200 g/m² to 500 g/m² (Customizable)
• Width: Up to 6 meters (Customizable)
• Length: 50-200 meters (Depending on project needs)
• Color: Black or White (Standard, customizable upon request)
• Compliance: Meets ASTM, ISO, and GB standards for durability and impermeability

Application Areas

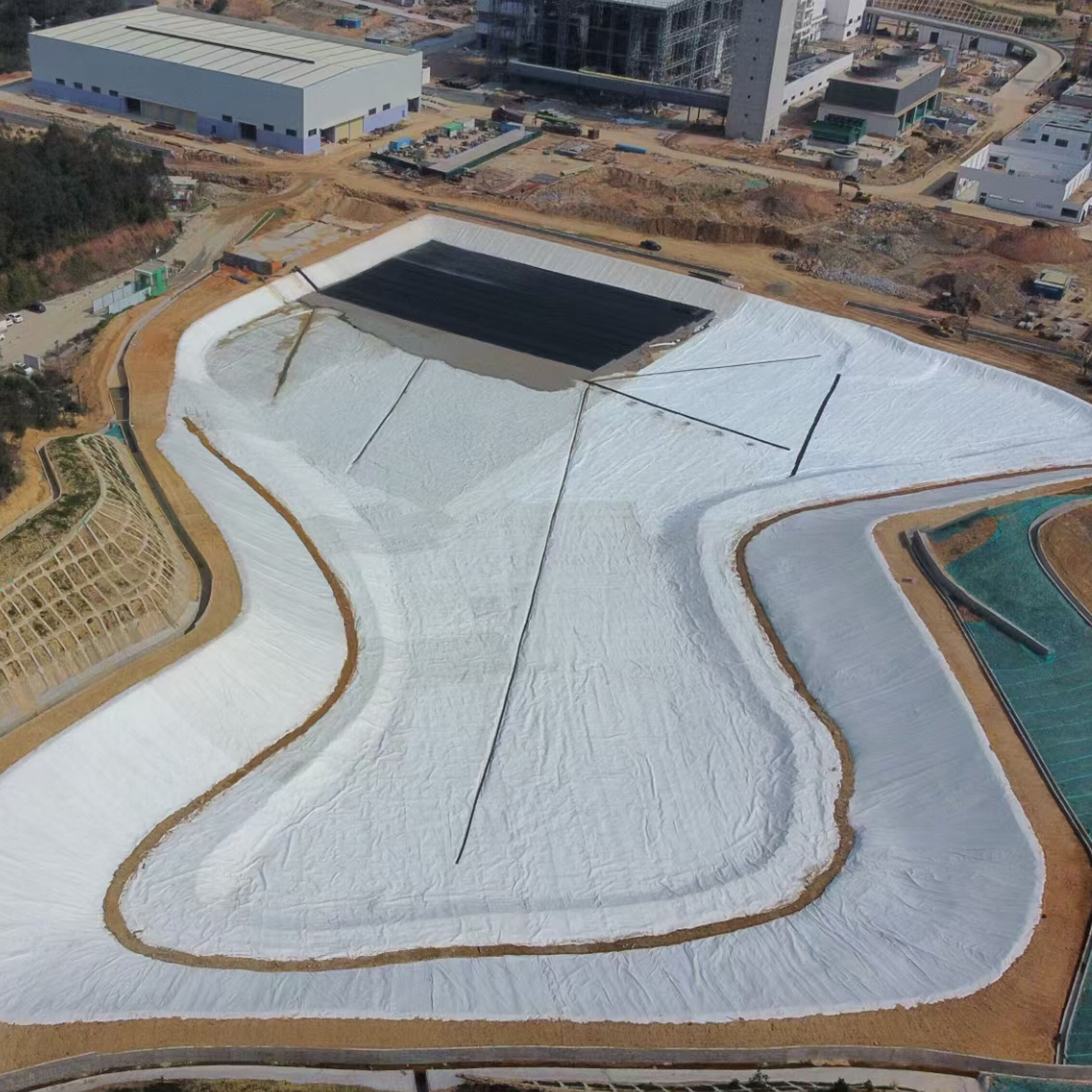

• Environmental Engineering: Used in landfills, reservoirs, and wastewater treatment ponds to prevent leakage and contamination.
• Agricultural Applications: Provides waterproofing and soil stabilization for irrigation canals, aquaculture ponds, and agricultural reservoirs.
• Road Construction: Acts as a barrier to prevent water infiltration, stabilizing the roadbed and increasing longevity.
• Mining Projects: Contains hazardous materials and prevents leachate in tailings ponds and mining waste containment.
• Slope Protection: Used for erosion control on embankments, slopes, and retaining walls.

Installation Recommendations

1. Surface Preparation: Ensure the installation surface is smooth, compacted, and free of sharp objects to prevent punctures.
2. Membrane Deployment: Unroll the composite geomembrane and geotextile carefully over the prepared surface, ensuring a flat and wrinkle-free installation.
3. Seam Welding: Use hot wedge or extrusion welding techniques to bond seams securely for watertight performance.
4. Anchoring: Secure the edges of the composite material in anchor trenches to prevent movement during use.
5. Inspection and Testing: Conduct non-destructive testing methods, such as vacuum or air pressure tests, to verify seam quality and impermeability.
6. Protective Covering: Cover the composite membrane with a layer of soil, gravel, or geotextile to enhance durability and protect against UV exposure.
