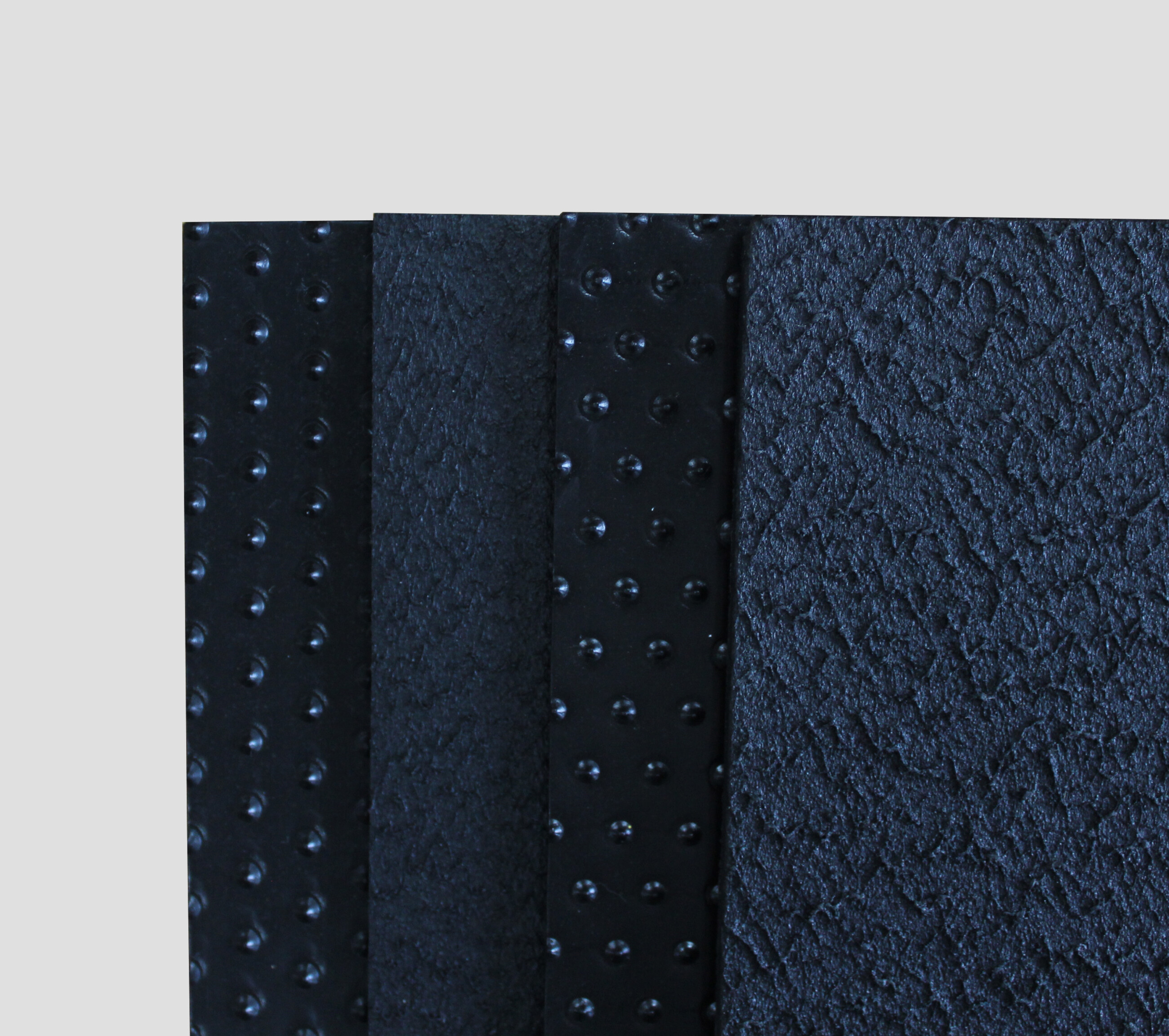

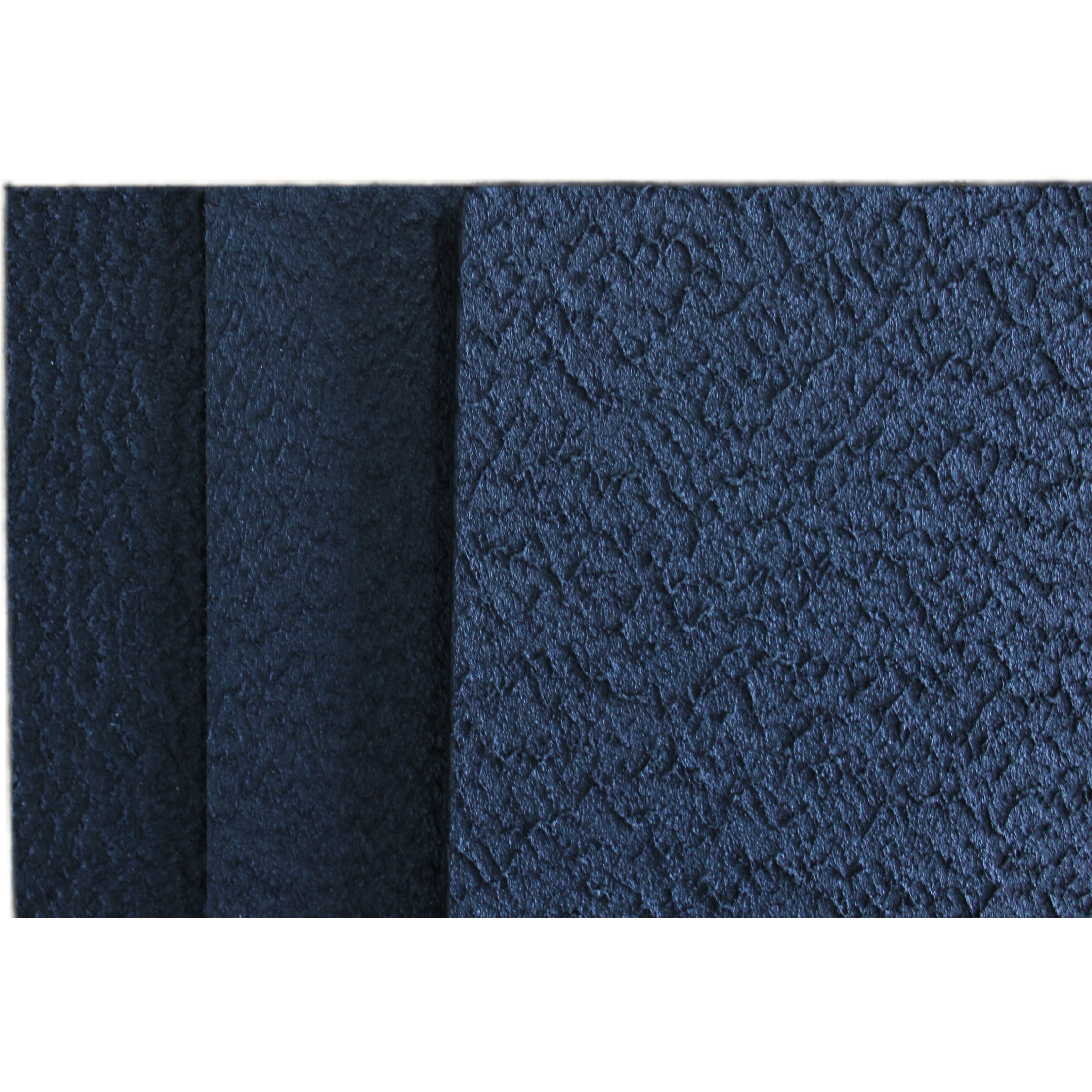

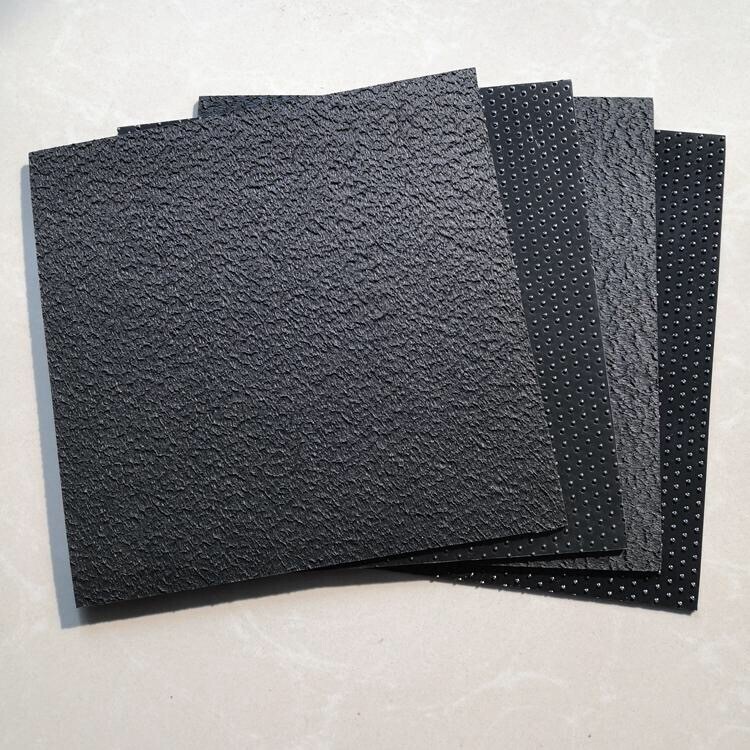

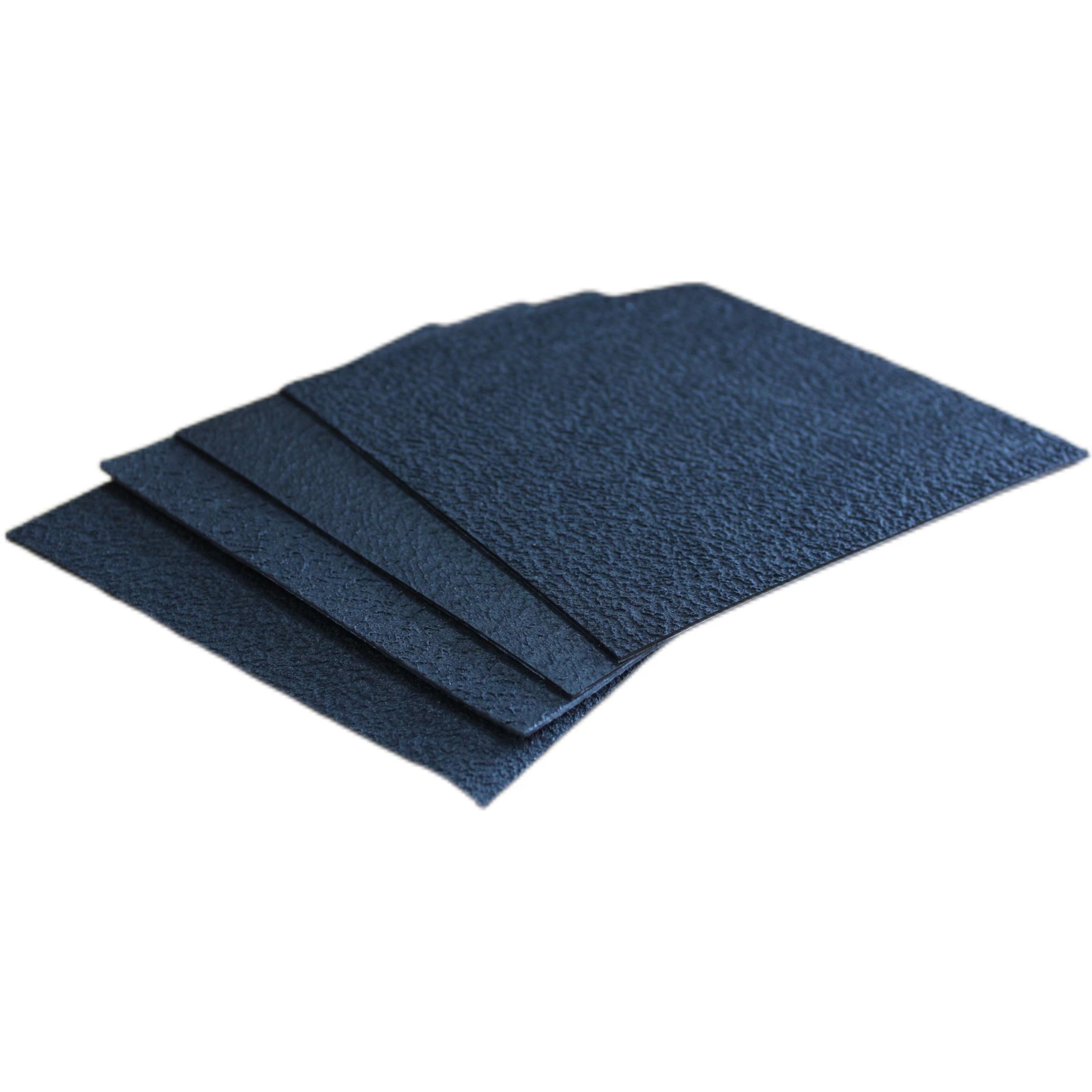

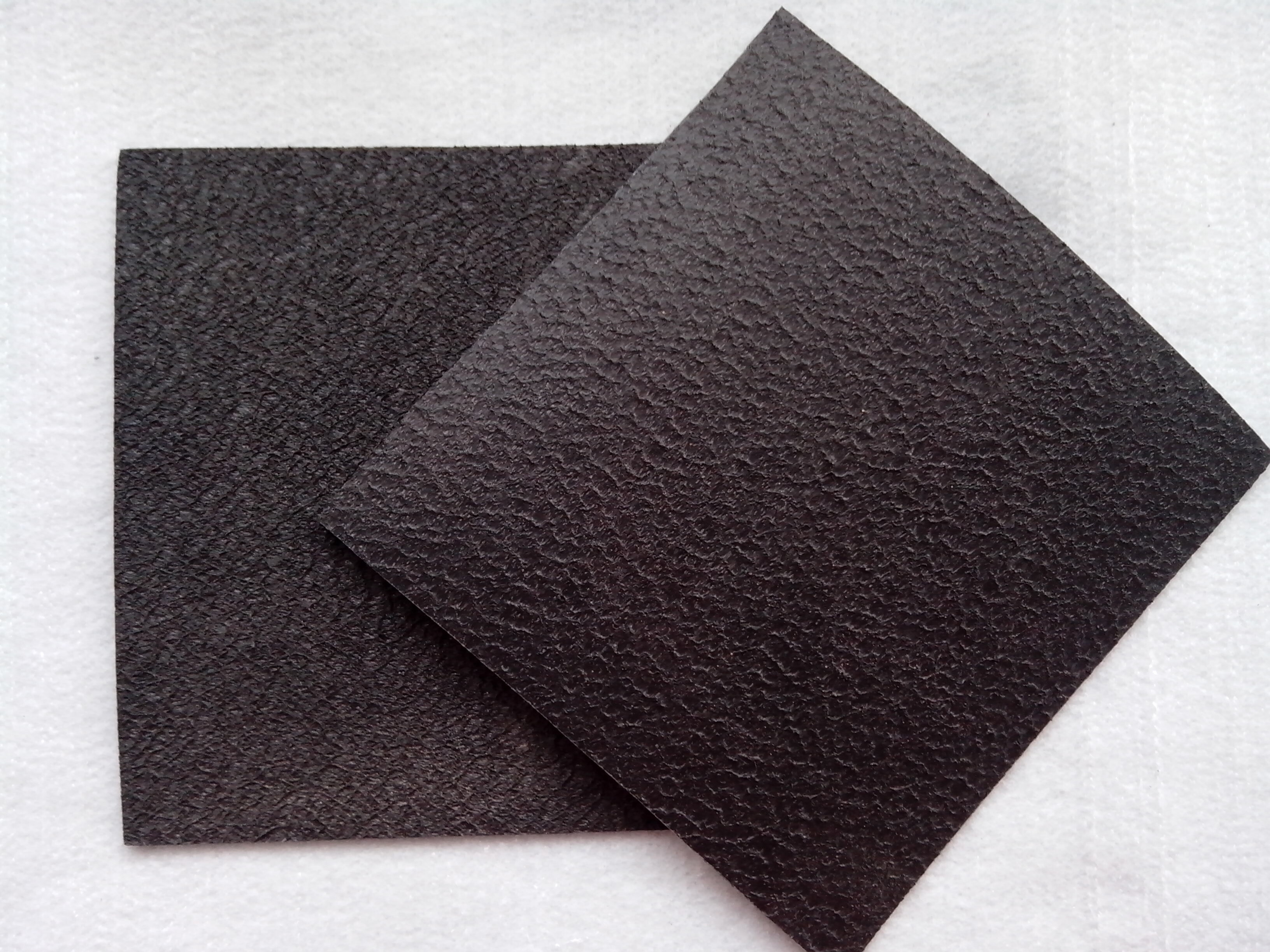

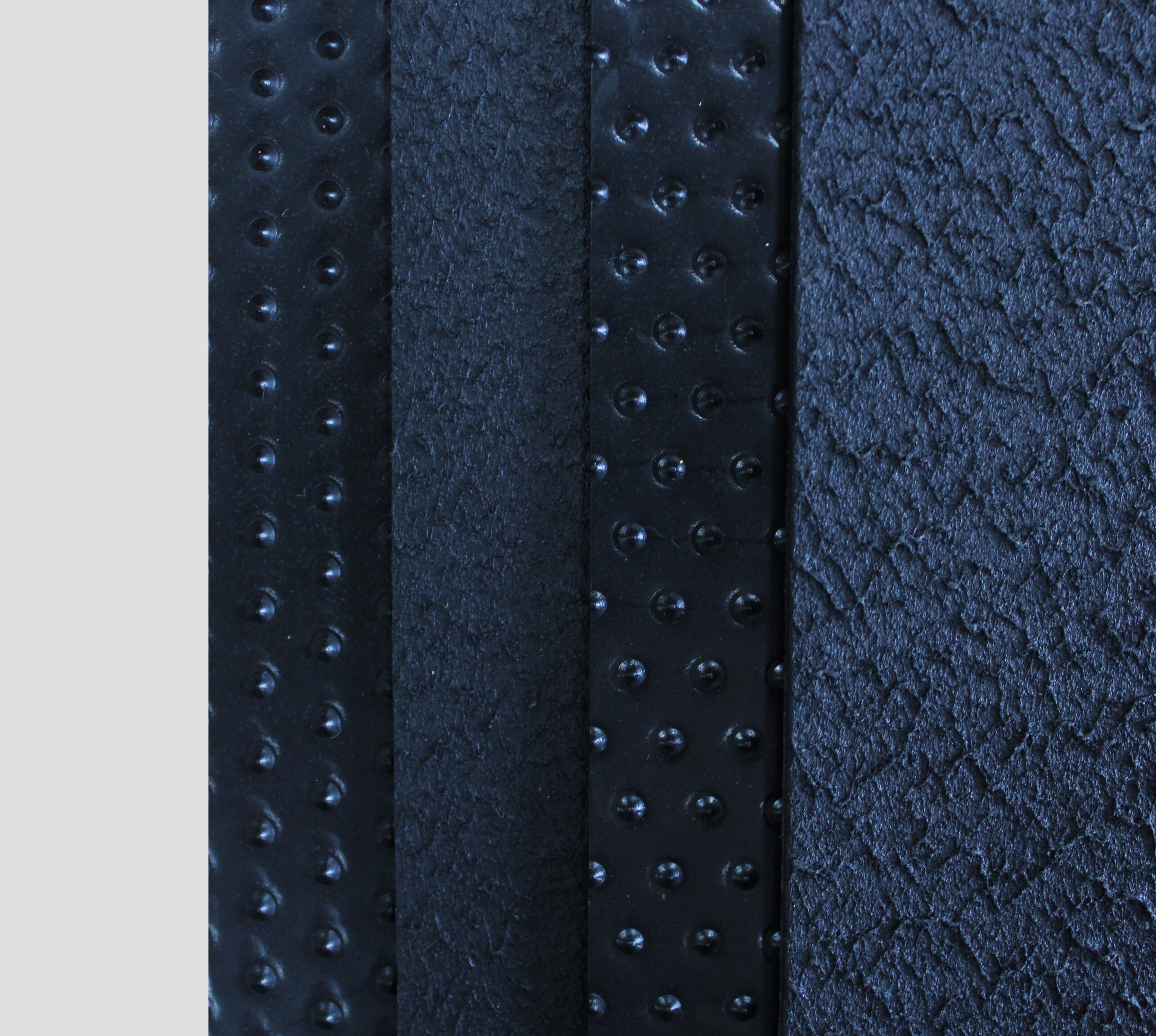

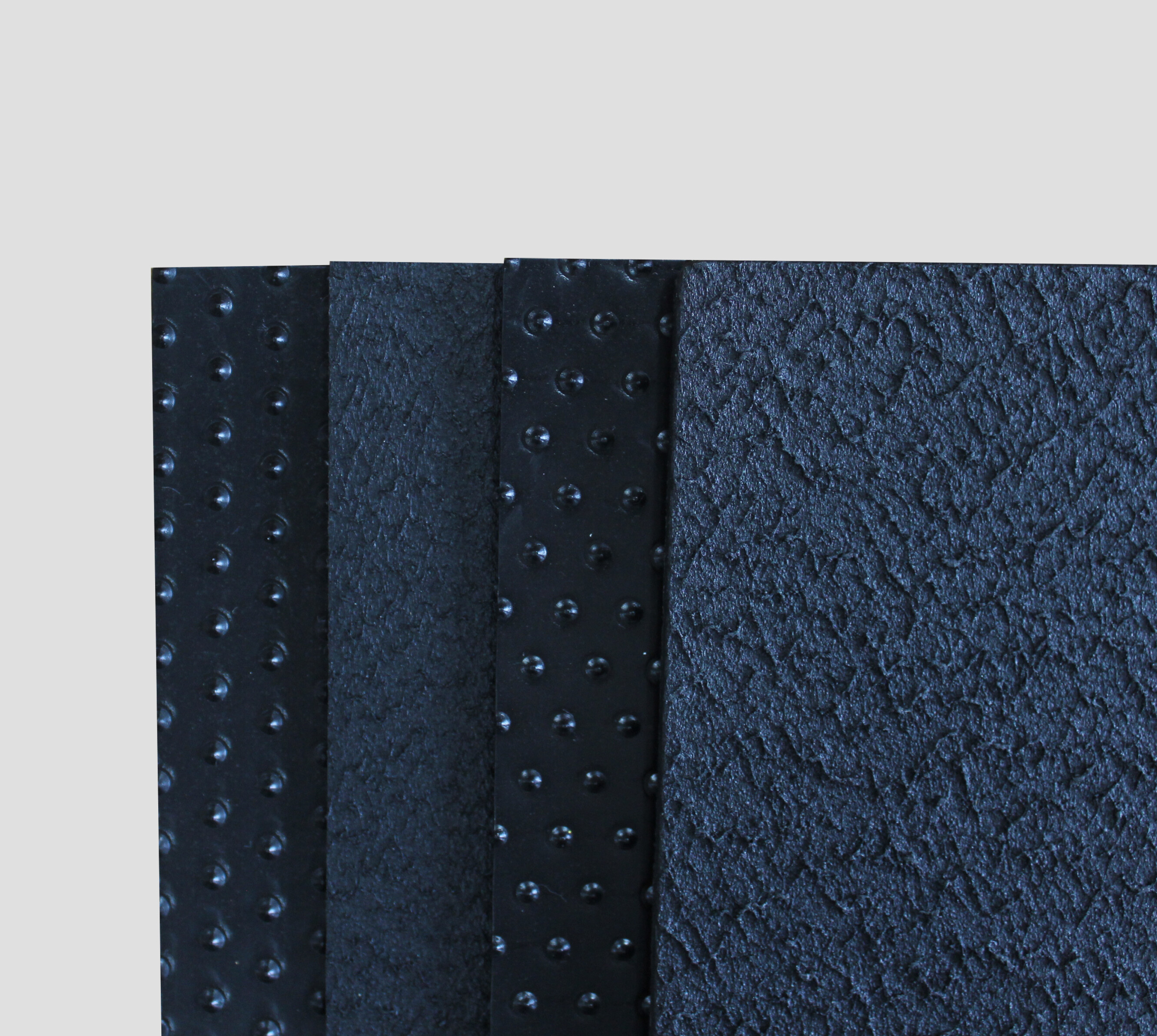

Textured geomembrane is a high-density polyethylene (HDPE) membrane with a rough surface, designed to enhance friction and stability in applications such as environmental containment, water management, and construction.One side or two sides uniformly textured surface by special blow technology.

Contact us

Product Overview:
Textured geomembrane is a high-performance impermeable membrane made from high-density polyethylene (HDPE) material, featuring a unique rough surface texture that provides excellent friction properties, making it especially suitable for applications on steep slopes or areas requiring stability. Combining impermeability, anti-slip, and high-strength advantages, this product is an ideal choice for engineering seepage control and soil reinforcement.


Product Features:

  1. Superior Anti-Slip Performance: The textured surface significantly increases friction, effectively preventing slippage, making it ideal for use in steep engineering areas.
  2. High Impermeability: Made from premium HDPE material, its low permeability effectively blocks water, gas, and chemicals, ensuring lasting protection for projects.
  3. Chemical Corrosion Resistance: Resists corrosion from various chemicals such as acids, alkalis, salts, and oils, making it suitable for corrosive environments like wastewater treatment and landfills.
  4. UV and Aging Resistance: Excellent weather resistance allows it to endure prolonged outdoor exposure without aging or cracking, resulting in a long service life.
  5. Environmentally Friendly: Compliant with environmental standards, non-toxic and harmless, suitable for aquaculture and other ecological projects.


Product Specifications:

  • Thickness: 1.0mm - 3.0mm (available in single or double textured surfaces)
  • Width: 1m - 8m (customizable based on project requirements)
  • Color: Commonly black, with other colors available upon request
  • Type: Single-sided textured, double-sided textured


Applications:

  • Landfills and Environmental Projects: Enhances anti-slip and impermeability of landfills, wastewater ponds, etc., ensuring environmental safety.
  • Steep Slopes and Embankment Reinforcement: The textured surface prevents material slippage, suitable for reservoirs, embankments, and artificial lakes.
  • Tunnels and Subway Engineering: Provides seepage protection for underground projects, with high stability suitable for complex terrains.
  • Aquaculture and Agricultural Land: Used in ponds, aquaculture tanks, etc., to prevent leakage and protect water quality.


Installation Recommendations:
Installing textured geomembrane requires professional technical support; the textured surface enhances friction with the soil contact surface. It is recommended to carry out welding and fixation under professional guidance to ensure seam sealing and anti-seepage effectiveness. Ensure a level foundation during installation to prevent damage to the membrane.

NO.

Item

Unit

Technical Data

Remark

1

Thickness

mm

0.75, 1.00, 1.25, 1.50, 2.00, 2.50, 3.00


2

Roughness Height ≥

mm

0.25


3

Tensile Strength at Yield ≥

N/mm

11, 15, 18, 22, 29, 37, 44

(TD/MD)

4

Breaking Strength ≥

N/mm

8, 10, 13, 16, 21, 26, 32

(TD/MD)

5

Yield Elongation ≥

%

12

(TD/MD)

6

Elongation at Break (TD/MD) ≥

%

100


7

Strength at Tear (Right-angle Tear) (TD/MD) ≥

N

93, 125, 160, 190, 250, 315, 375


8

Antipuncture Strength ≥

N

200, 270, 335, 400, 535, 670, 800


9

Tensile Strength at Break ≥

h

300


10

Carbon Black Content

%

2.0-3.0


11

Carbon Black Distribution


In 10 data, 3 degrees no more than 1.4, and 5 degrees not allowed


12

Anti-Oxidation Time

min

≥100, ≥400


13

85°C Heat Anti-Aging

%

55


14

Retention of Standard OIT after 1600 Hours of Ultraviolet Irradiation ≥

%

50


15

Thickness Limit Deviation

%

-10

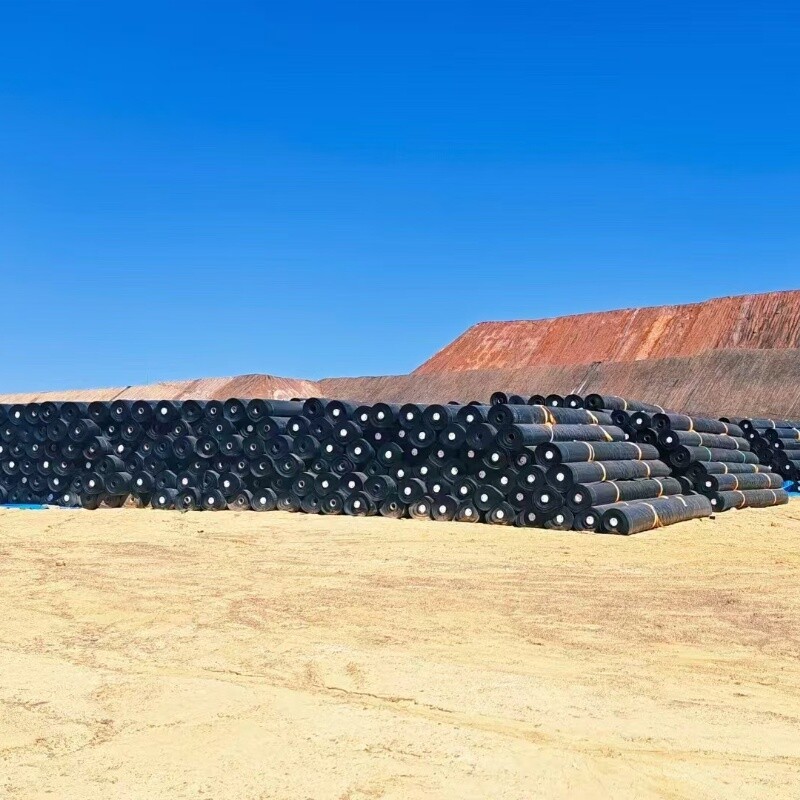

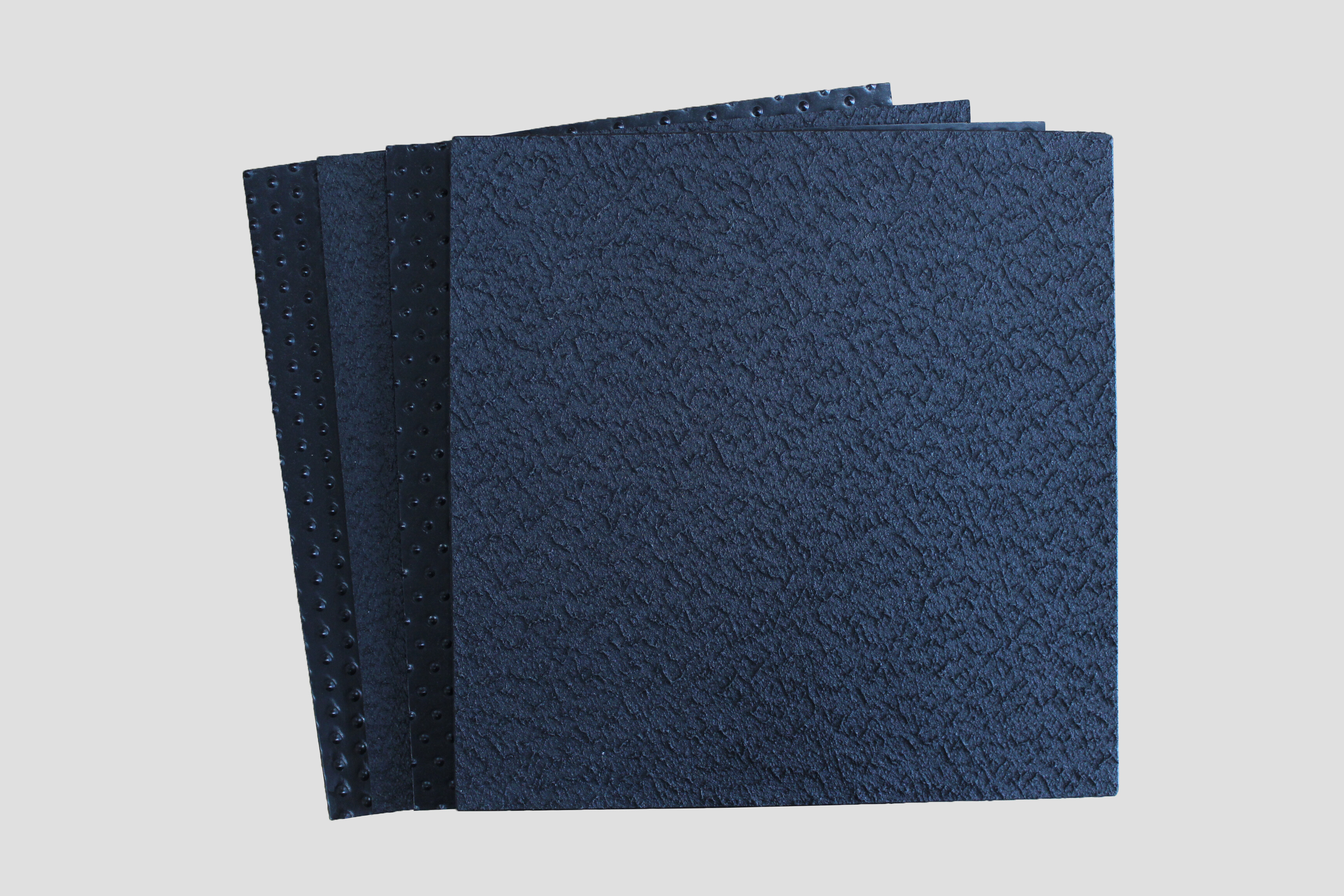

Textured Geomembrane.jpg


FAQ

  • What can you buy from HONGYUE?

    Geogrid, Geomembrane, Geocell, Geotextile and other geosynthetic materials.

  • What you can expect from HONGYUE?

    Competent and knowledgeable technical engineers .

    Customized service according to engineering requirements .

    Complete solutions for product design, delivery and installation in construction projects .

    Offer various complementary product portfolio and contract project.

  • How can HONGYUE guarantee quality?
    Always a pre-production sample before mass production;
    Always final Inspection before shipment
  • What is your sample policy?

    We can provide the sample free, you just pay for the transportation freight then you can get 3-5 days.

  • What is the services can HONGYUE provide?
    Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,Express Delivery,and so on ;
    Accepted Payment Currency:USD,CNY;Euro;and so on ;
    Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash
  • Are you manufacturer or trading company ?

    We are a professional manufacturer

  • How about your delivery time?
    The specific delivery time depends on the items and the quantity of your order.
