1. Product Overview

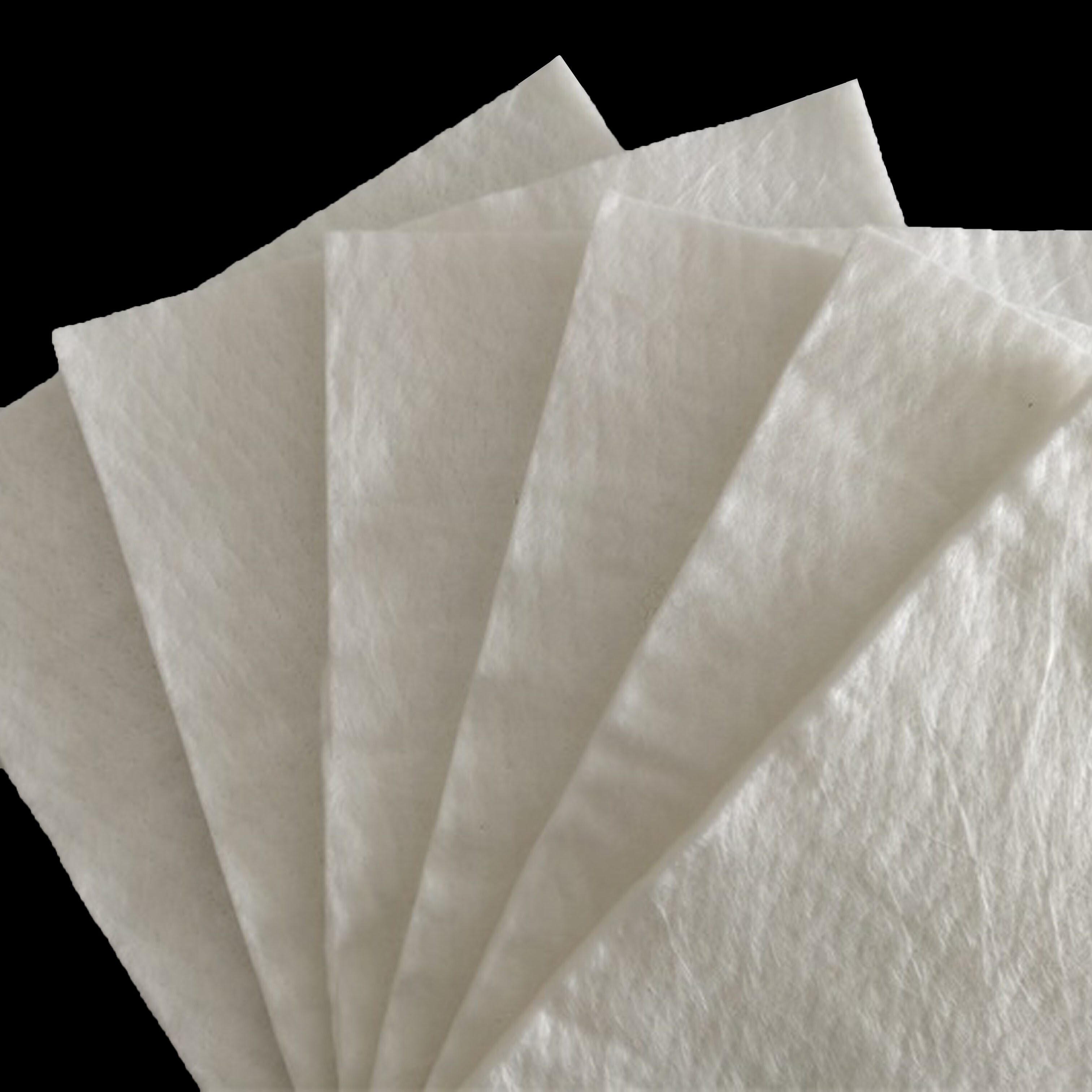

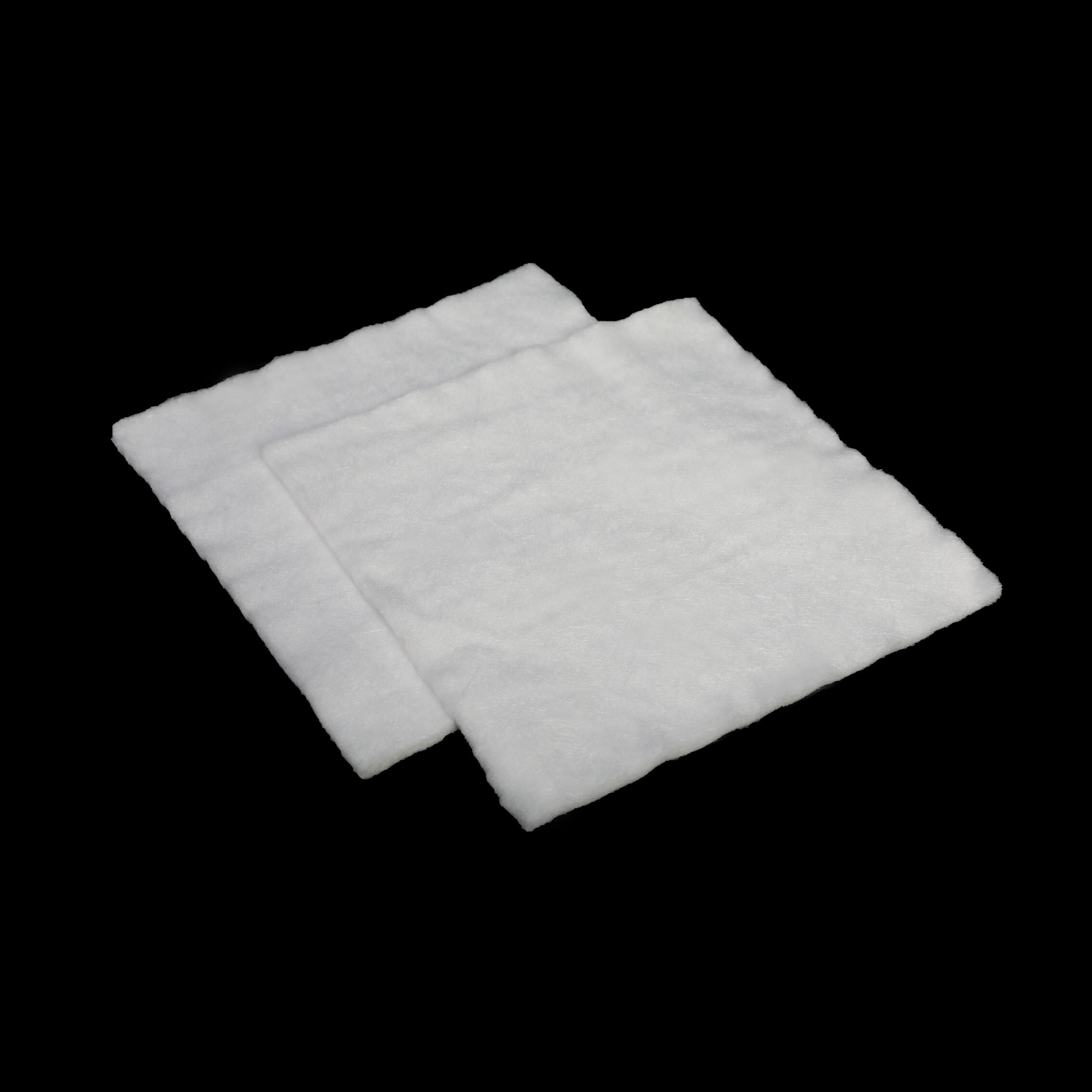

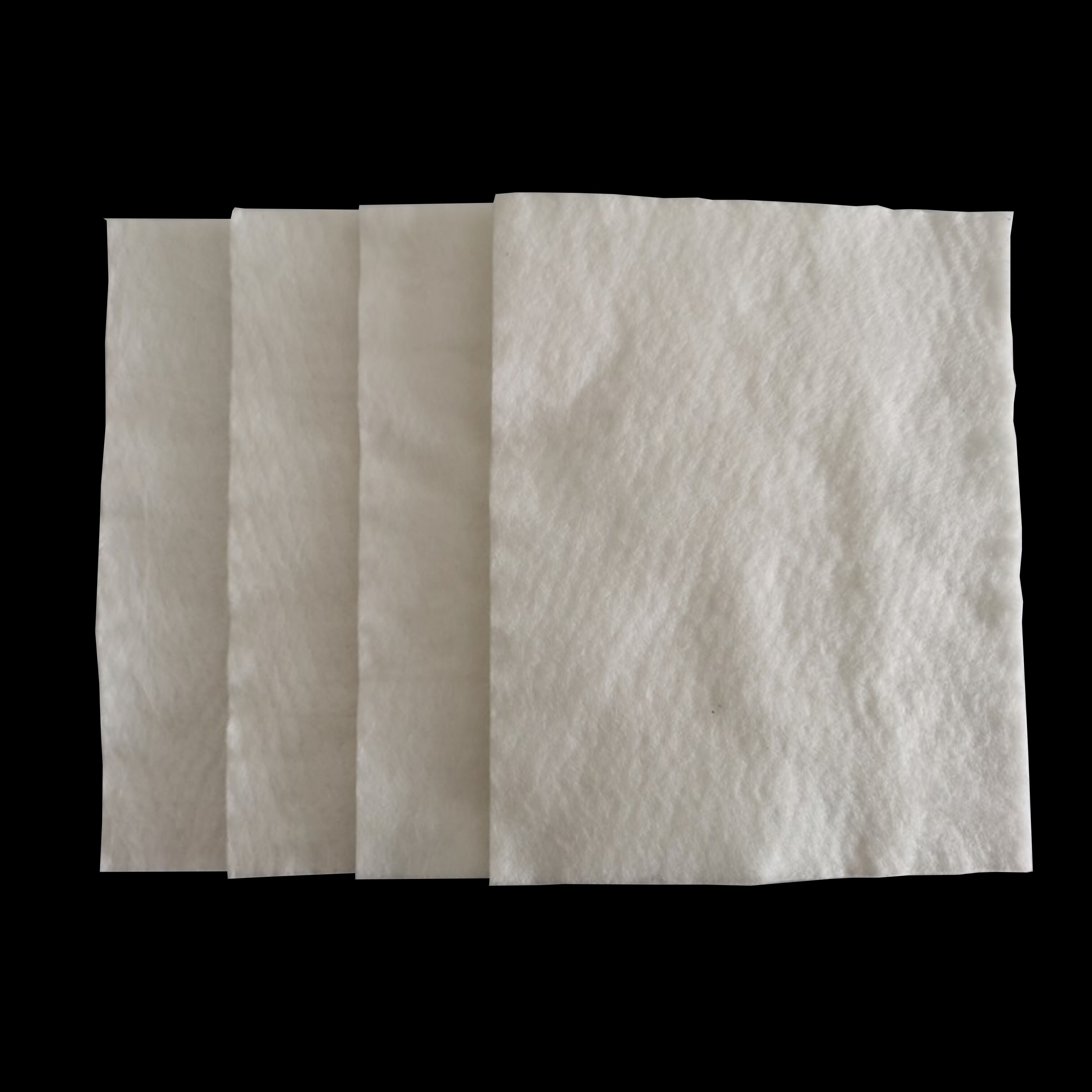

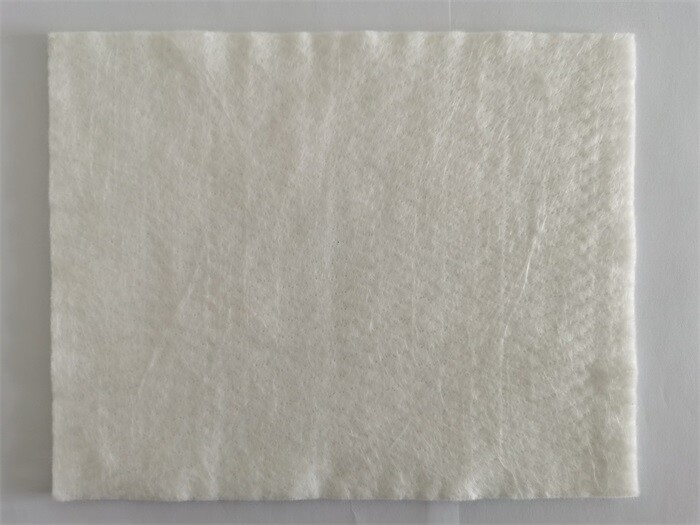

Singed continuous filament geotextile fabric is a high-performance nonwoven geosynthetic material manufactured using polyester (PET) or polypropylene (PP) continuous filaments. The singeing process heat-treats the fabric’s surface, reducing fiber shedding and enhancing durability. This material provides superior filtration, reinforcement, and erosion control, making it ideal for demanding civil engineering and environmental applications.

2. Product Features

• Enhanced Durability: Singeing reduces loose fibers, improving resistance to wear and damage.
• High Strength and Flexibility: Provides excellent tensile strength and elongation properties, adapting to various soil conditions.
• Efficient Filtration and Drainage: Allows water to pass through while retaining soil particles, ensuring effective separation.
• Chemical and UV Resistance: Highly resistant to chemical degradation and UV exposure, ensuring long-lasting performance.
• Eco-Friendly Manufacturing: Made using sustainable processes with minimal environmental impact.

3. Product Specifications

• Material: Polyester (PET) or Polypropylene (PP)
• Weight Range: 100 gsm to 800 gsm
• Width: 1m to 6m
• Roll Length: Standard options include 50m or 100m rolls (custom sizes available)
• Color: White or black (custom colors available upon request)
• Compliance: Meets ISO, ASTM, or custom standards as per project requirements

4. Application Areas

• Road and Highway Construction: Provides subgrade stabilization and pavement reinforcement.
• Drainage Systems: Enhances filtration and prevents soil clogging in drainage channels.
• Soil Reinforcement: Supports embankments, retaining walls, and slope stabilization.
• Erosion Control: Protects against soil erosion on riverbanks, slopes, and coastal areas.
• Environmental Projects: Used in landfill liners, reservoirs, and wetland restoration for filtration and separation.

5. Installation Guidelines

• Surface Preparation: Ensure the ground is level and clean before installation.
• Cutting and Placement: Cut the fabric to the desired dimensions and lay it flat without wrinkles.
• Overlap: Maintain a minimum overlap of 30 cm to 50 cm for adjacent sheets to ensure coverage.
• Anchoring: Secure the fabric with anchors, staples, or weights to prevent displacement.
• Inspection: Check for any tears or damage during installation and replace any defective sections promptly.
