1. Product Overview

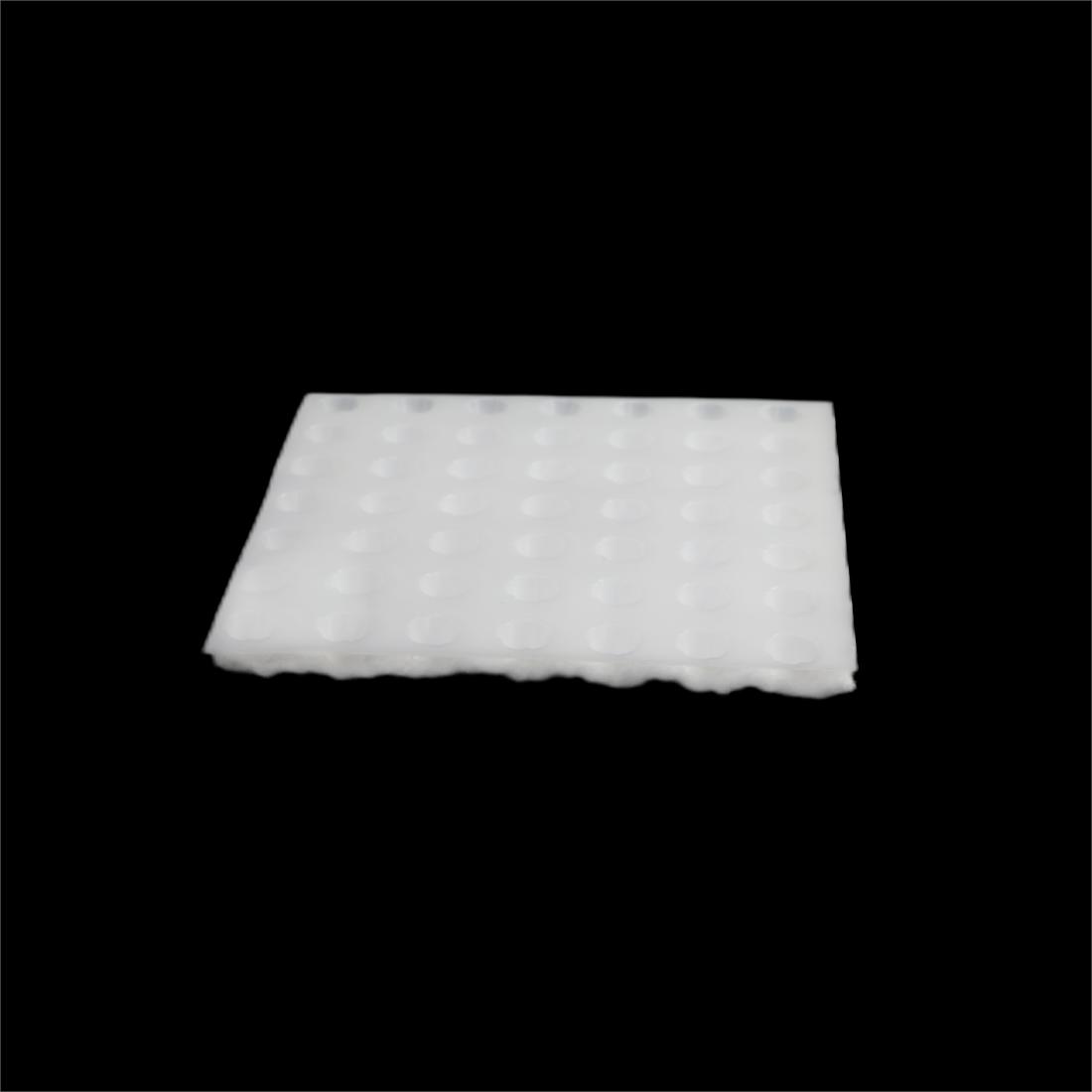

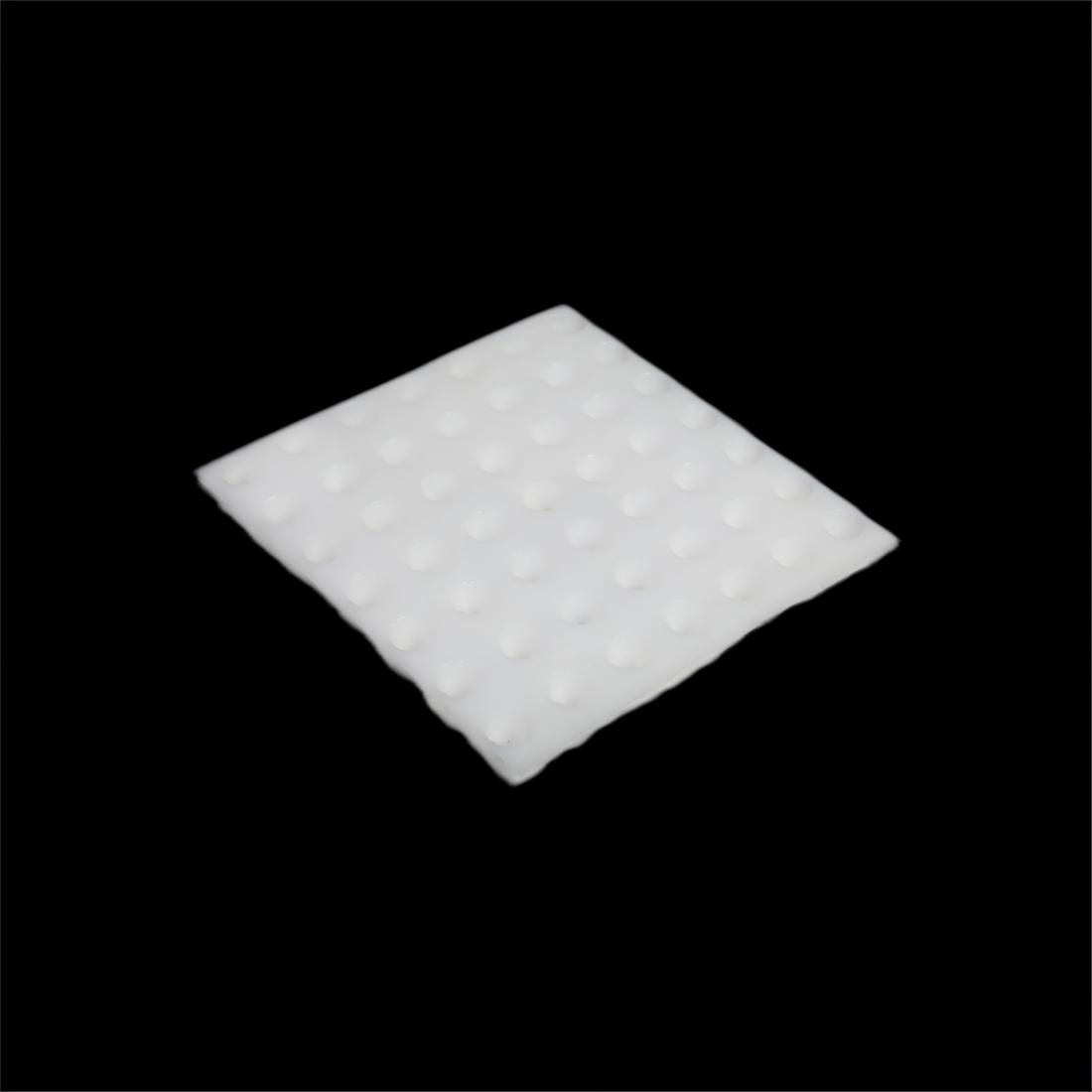

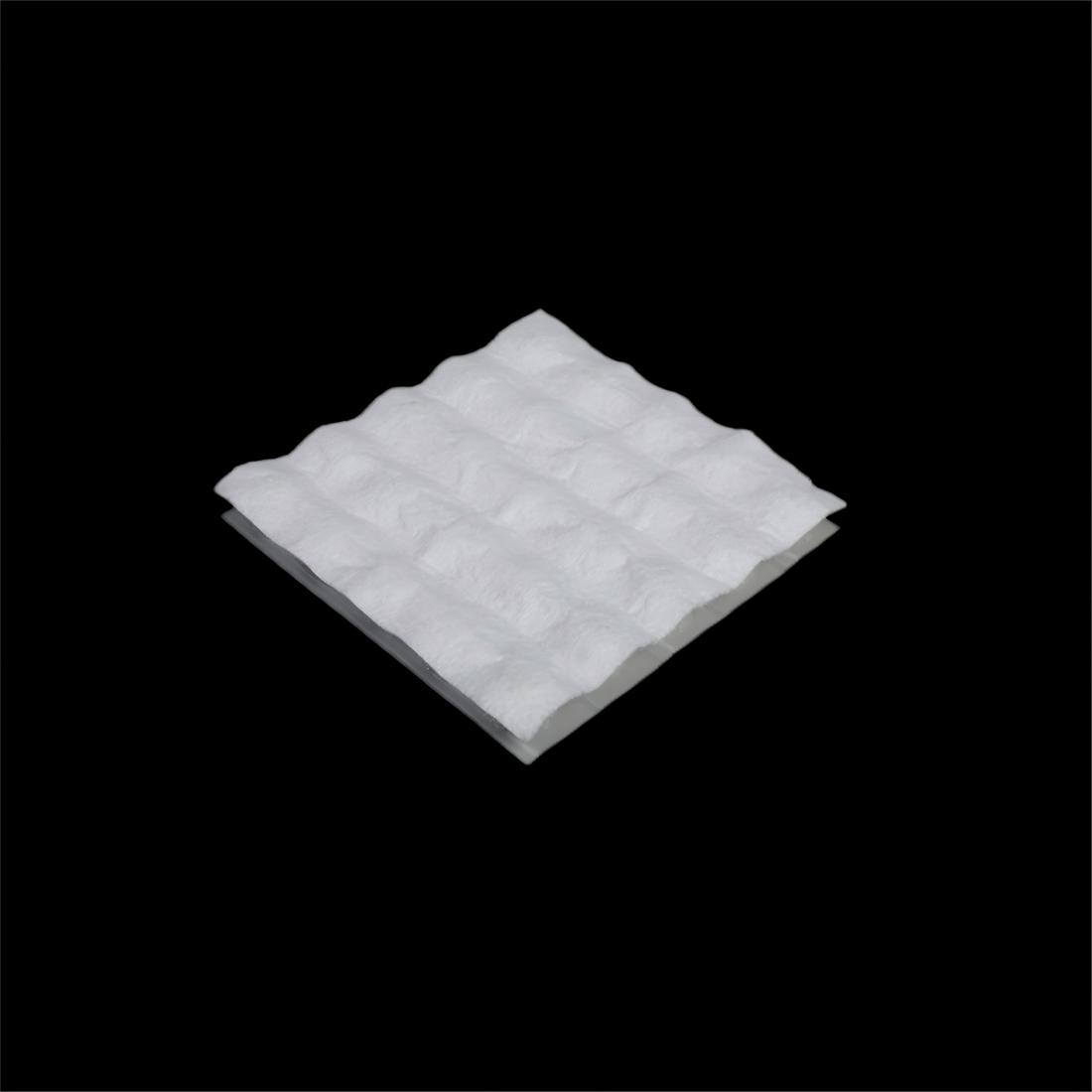

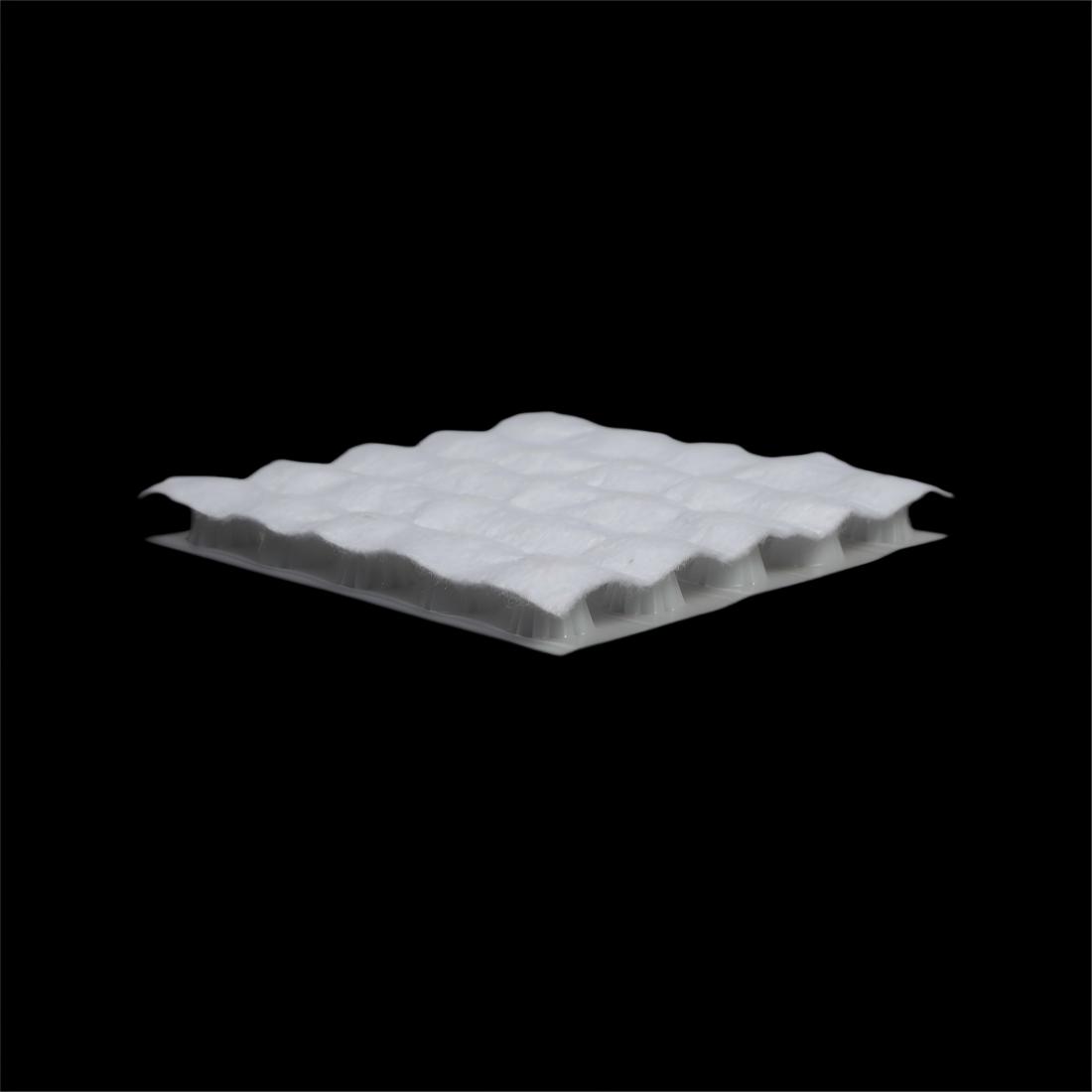

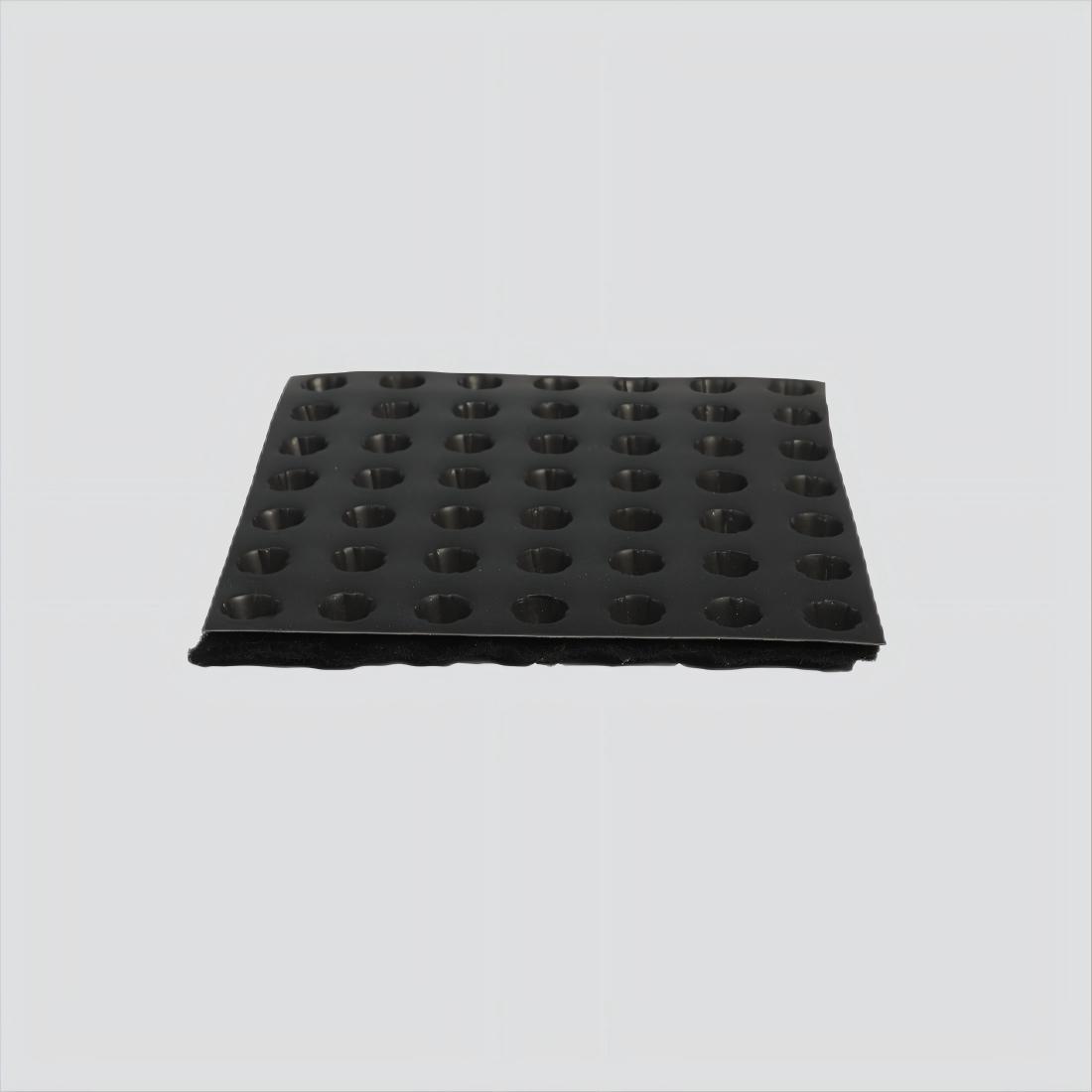

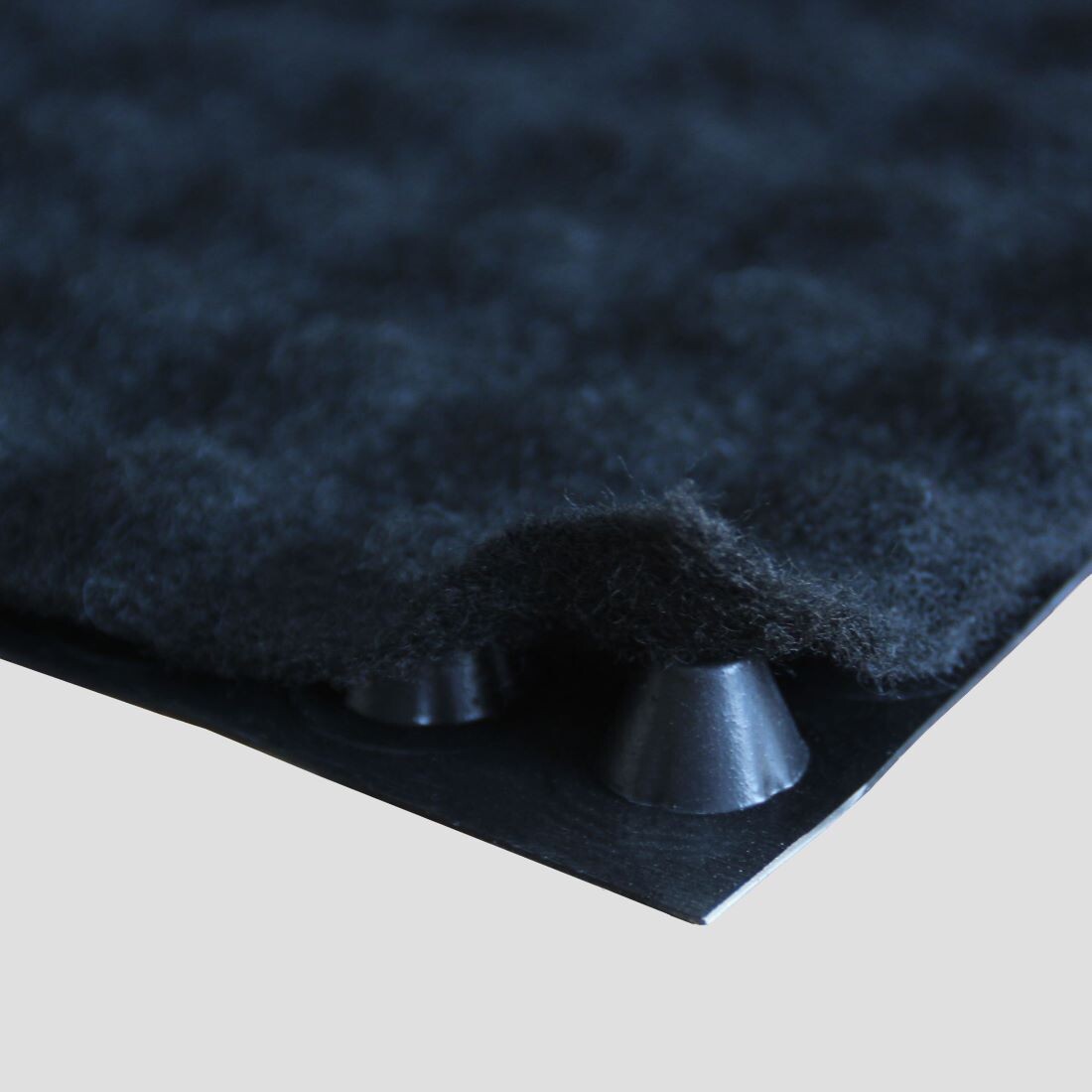

Short-filament composite drainage board is a multifunctional geosynthetic material composed of an HDPE drainage board laminated with short-filament nonwoven geotextile. The dimpled HDPE sheet ensures efficient drainage, while the geotextile layer provides filtration, preventing soil and sediment from clogging the drainage system. This combination is widely used in underground waterproofing, retaining walls, and green roofing systems.

2. Product Features

• Integrated Drainage and Filtration: Combines excellent water drainage with effective soil filtration.
• Durable and Reliable: Made from high-strength HDPE and short-filament geotextile for long-term performance.
• Lightweight and Flexible: Easy to install and transport, reducing labor costs.
• Chemical and UV Resistance: Resists degradation from harsh environmental conditions and chemicals.
• Eco-Friendly: Non-toxic and recyclable material, safe for sustainable projects.

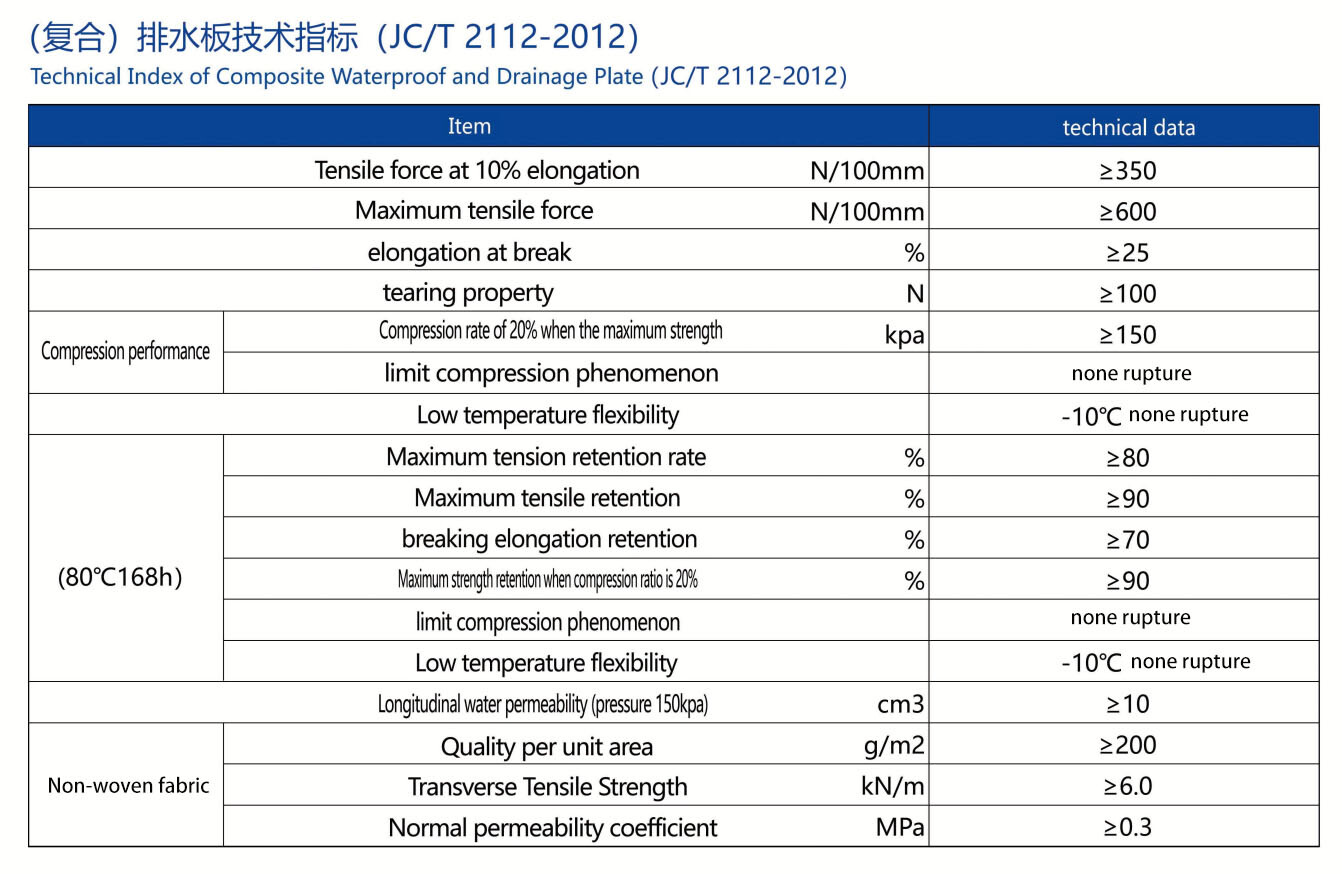

3. Product Specifications

• Material: HDPE drainage board with short-filament geotextile
• Geotextile Weight: 100gsm to 500gsm (customizable)
• Dimple Height: 8mm to 30mm (customizable)
• Width: 1m to 3m
• Roll Length: 10m to 50m (customizable based on project needs)

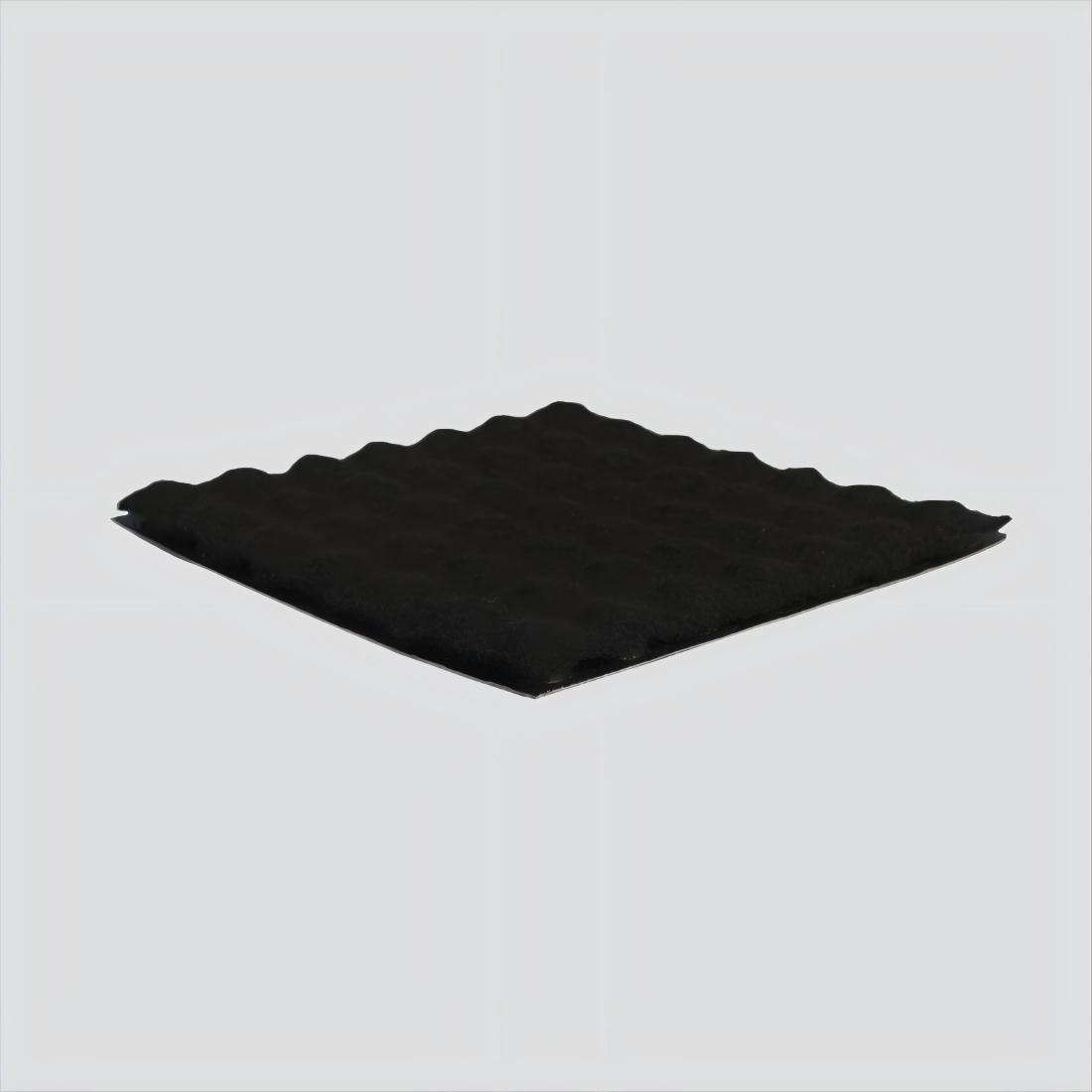

• Color Options: Black, green, or custom colors available
• Compliance: Meets ISO, ASTM, and international geosynthetic standards

4. Application Areas

• Green Roof Systems: Provides water drainage and soil protection for rooftop vegetation.
• Basement Waterproofing: Prevents water seepage and protects foundations from moisture damage.
• Retaining Walls: Reduces hydrostatic pressure by enhancing drainage behind retaining walls.
• Landscaping Projects: Controls water flow in gardens, parks, and sports fields.
• Infrastructure Foundations: Supports drainage in road and railway subgrade stabilization.

5. Installation Guidelines

• Surface Preparation: Clean and level the surface to ensure smooth installation.
• Placement: Lay the drainage board with the geotextile side facing the soil or vegetation layer.
• Overlap: Maintain an overlap of 5cm to 10cm between adjacent sheets for continuous coverage.
• Securing: Use nails, stakes, or adhesive to secure the board in place.
• Backfilling: Cover the board with soil or gravel as per the project design.
• Inspection: Verify alignment and secure attachment before proceeding with additional construction.
