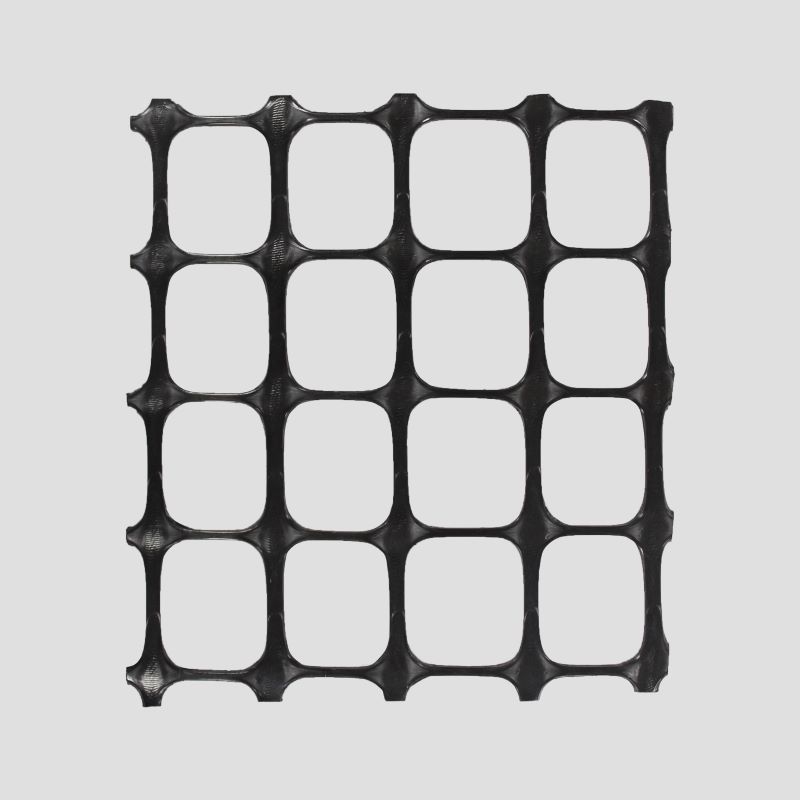

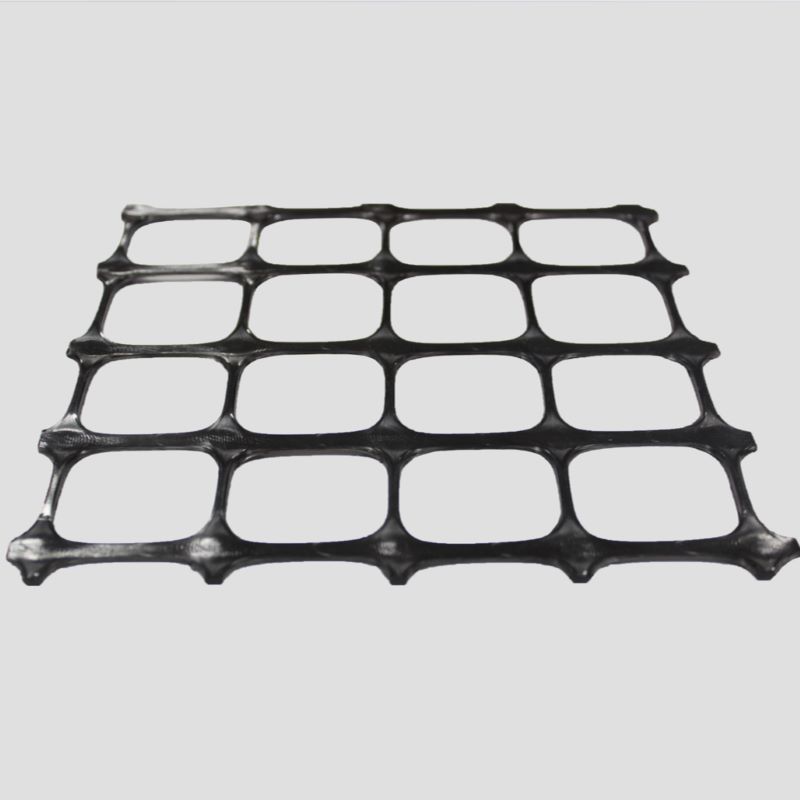

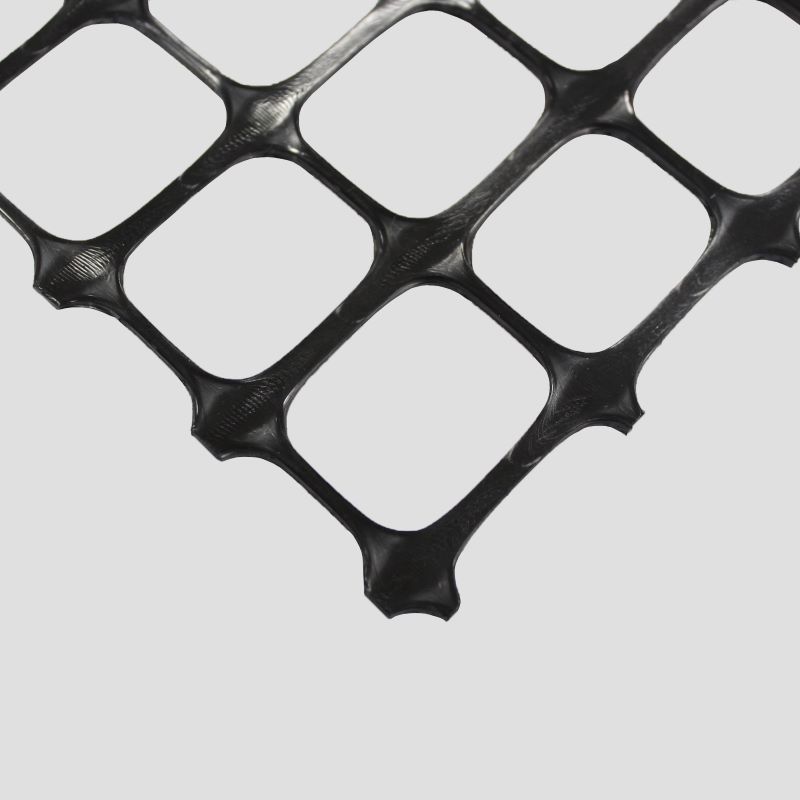

Product Overview

Geogrid is a geosynthetic material used to enhance soil strength, stability, and load distribution. Made from high-strength polymers, geogrids are widely used in road construction, slope protection, retaining walls, and other civil engineering projects.

Key Features

• High Tensile Strength: Effectively reinforces soil under heavy loads.
• Durability: Resistant to UV exposure, chemicals, and environmental stress.
• Lightweight and Flexible: Easy to handle and install on various terrains.
• Cost-Effective: Reduces overall construction costs by optimizing material usage.
• Environmentally Friendly: Promotes sustainable land use by preventing erosion.

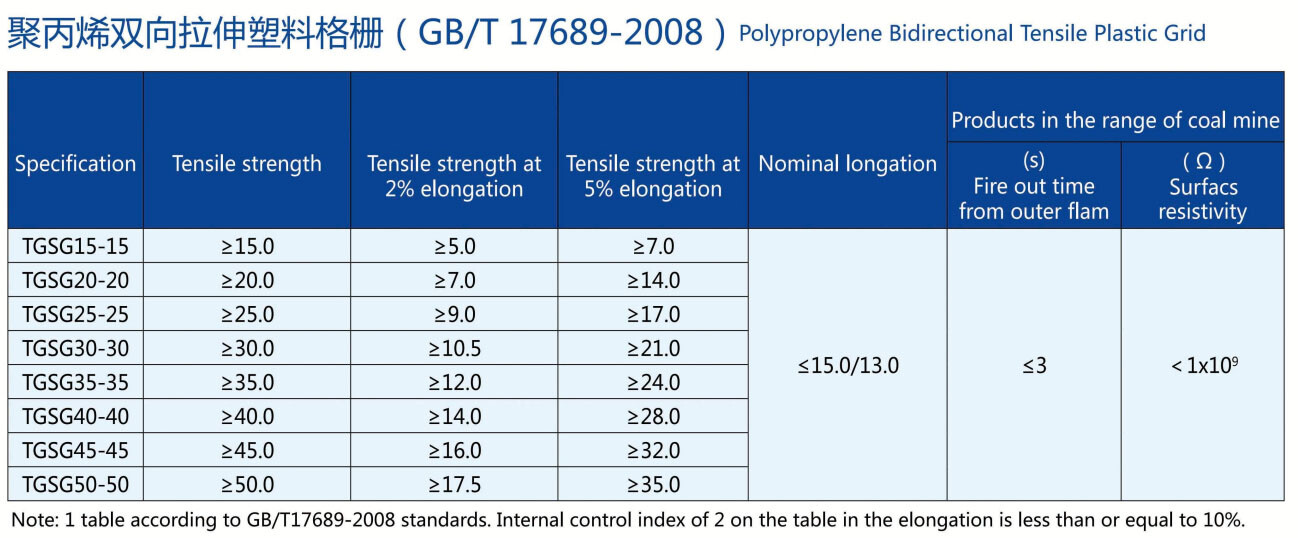

Specifications

• Material: Polypropylene (PP), Polyester (PET), or High-Density Polyethylene (HDPE)
• Types: Uniaxial Geogrid, Biaxial Geogrid, and Triaxial Geogrid
• Mesh Size: Varies from 10x10mm to 40x40mm (customizable)
• Width: 1-6 meters
• Roll Length: 20-50 meters
• Tensile Strength: From 15 kN/m to 200 kN/m

Applications

• Road and Pavement Reinforcement: Improves load distribution and reduces surface deformation.
• Slope Stabilization: Prevents landslides and soil erosion on steep slopes.
• Retaining Walls: Provides additional structural strength and stability.
• Railways and Airports: Reinforces foundations under dynamic loading.
• Landfill and Drainage Projects: Enhances soil drainage and erosion control.

Installation Guidelines

1. Prepare the Base: Ensure the ground is leveled and compacted.
2. Lay the Geogrid: Unroll the geogrid directly over the prepared subgrade.

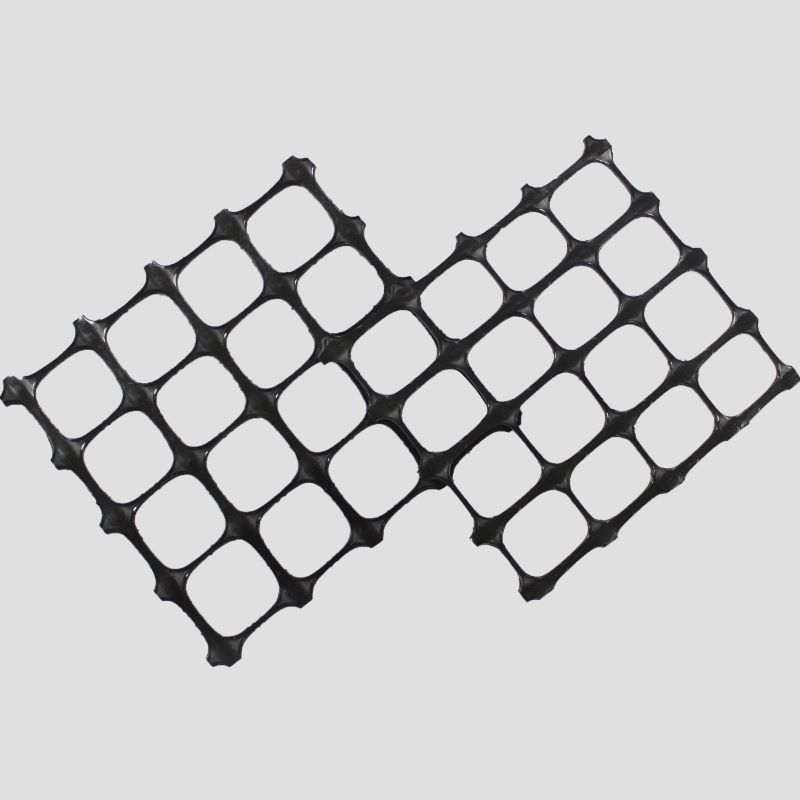

3. Overlap and Secure: Overlap adjacent geogrid edges by 20-30 cm and anchor with staples or pins.
4. Backfill: Cover the geogrid with aggregate, soil, or other specified materials.
5. Compact and Inspect: Compact the backfill layer and check for proper alignment and tension.
6. Repeat as Necessary: For multi-layer installations, repeat steps for each layer.
