Product Overview

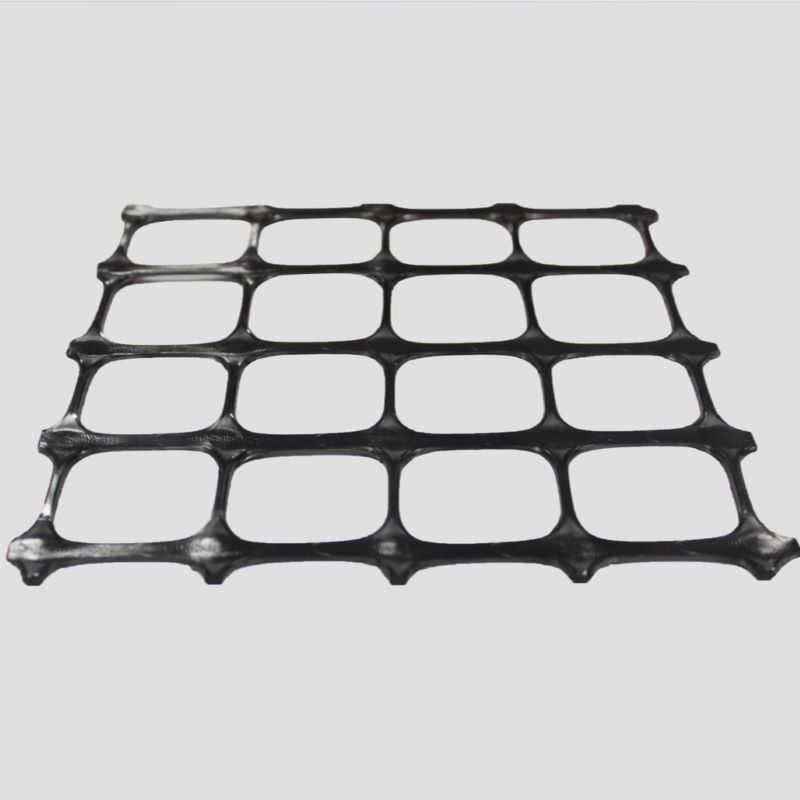

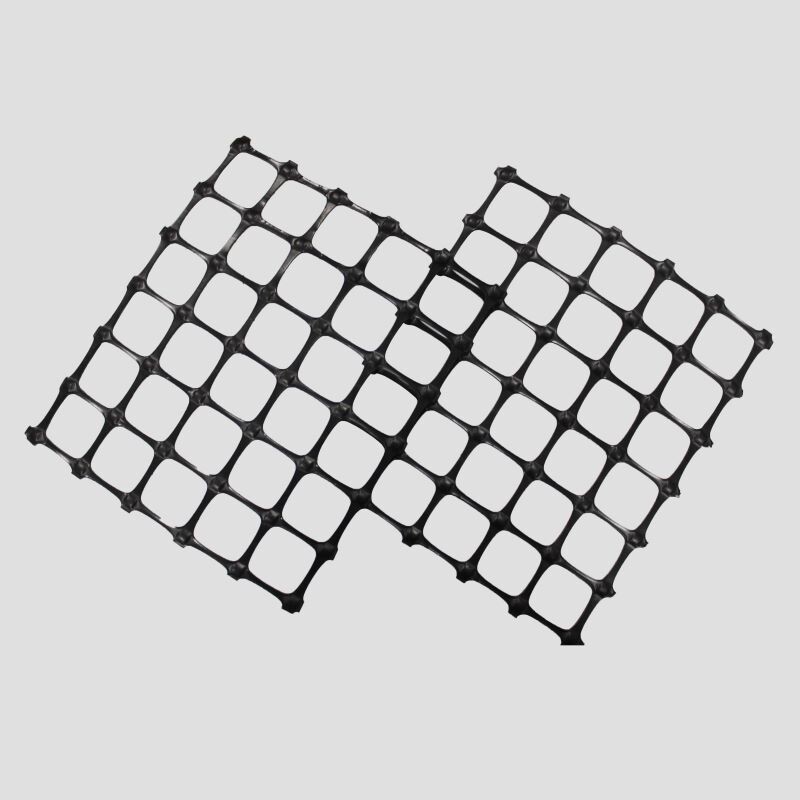

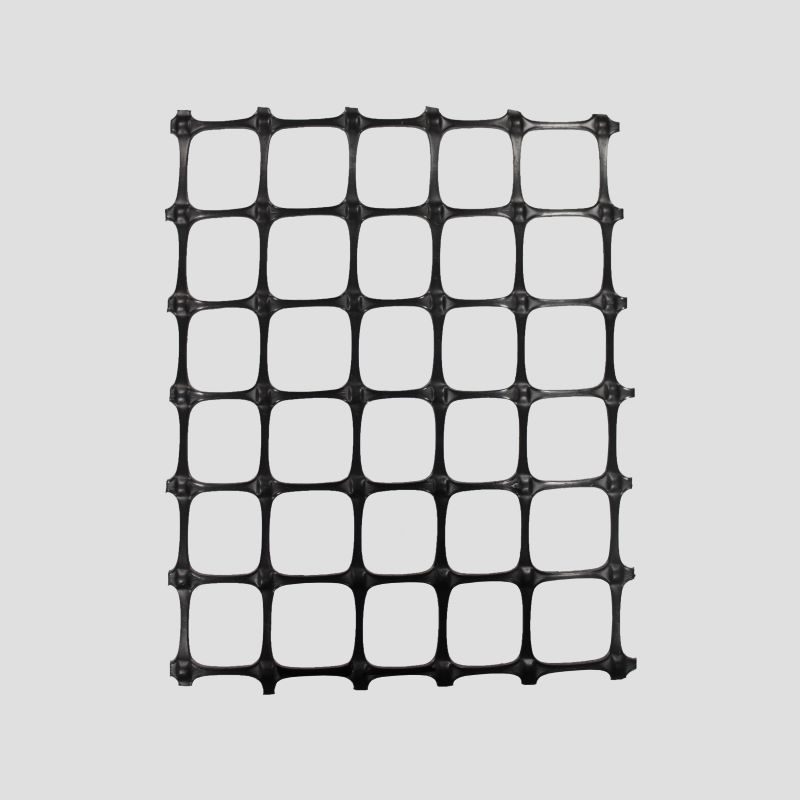

Plastic geogrids are high-strength geosynthetic materials designed for soil stabilization and reinforcement. Made from durable polymers, they offer superior load-bearing capacity, making them ideal for various civil engineering and construction applications.

Key Features

• High Tensile Strength: Resists deformation under heavy loads.
• Lightweight and Flexible: Easy to transport and install.
• Weather-Resistant: Performs well under extreme temperature and environmental conditions.
• Cost-Effective: Reduces the overall construction and maintenance costs.
• Eco-Friendly: Minimizes soil erosion and promotes sustainable construction.

Specifications

• Material: High-density polyethylene (HDPE) or polypropylene (PP)
• Mesh Size: Customizable (e.g., 20x20mm, 30x30mm, etc.)
• Width: 1-6 meters

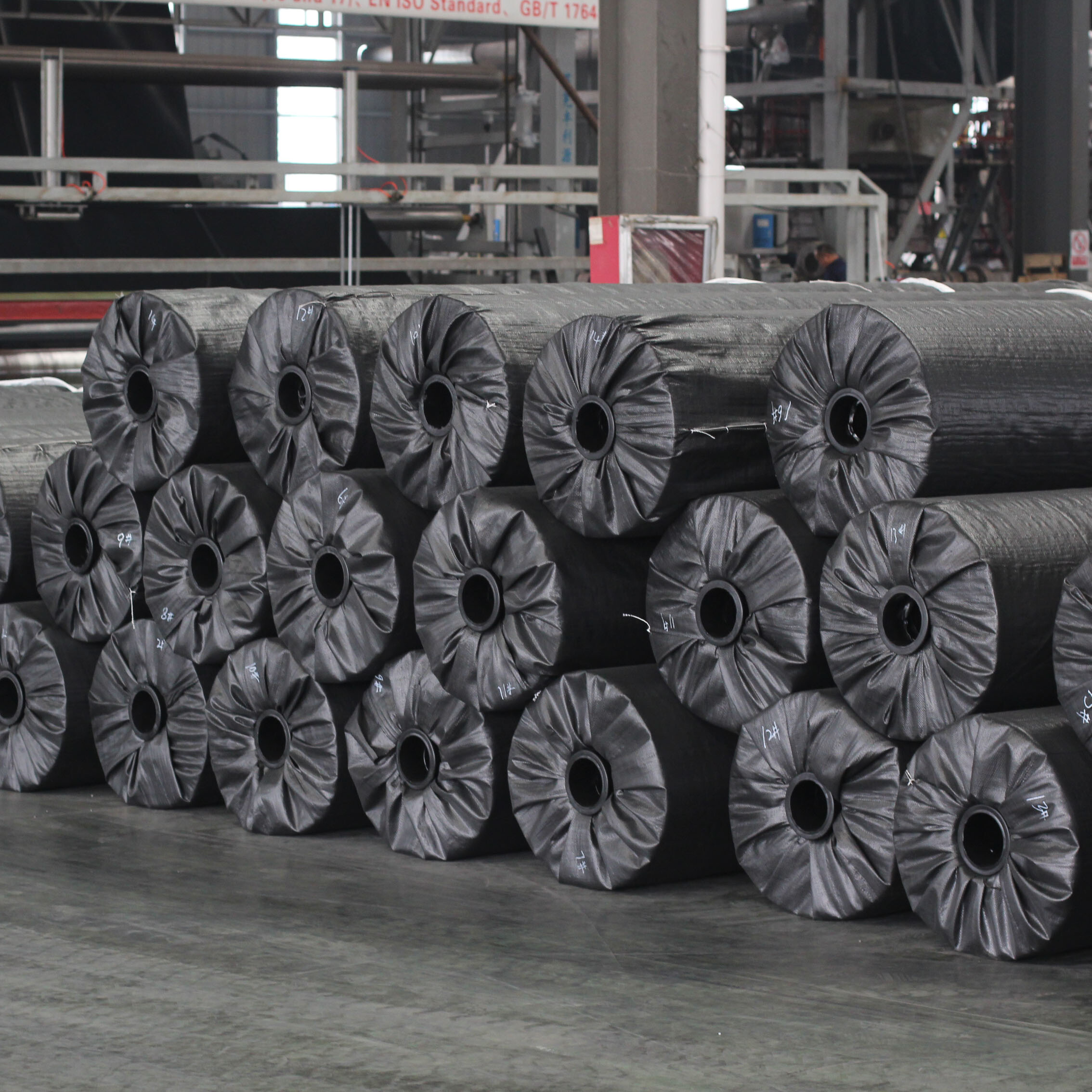

• Length: Roll lengths up to 50 meters
• Thickness: As per project requirements
• Tensile Strength: 15-50 kN/m (or customizable)

Applications

• Road and Pavement Construction: Enhances load distribution and prevents surface cracking.
• Slope and Embankment Stabilization: Reduces soil displacement and erosion risks.
• Retaining Walls: Provides structural integrity and durability.
• Railway and Airport Infrastructure: Improves foundation stability under dynamic loads.
• Drainage and Water Management: Supports sustainable soil erosion control in flood-prone areas.

Installation Guidelines

1. Site Preparation: Ensure the subgrade is clean, leveled, and compacted before installation.
2. Unroll the Geogrid: Lay the plastic geogrid flat over the prepared surface.
3. Overlap Edges: Ensure a minimum overlap of 20-30 cm between adjacent rolls for structural integrity.
4. Anchor and Secure: Use pins or stakes to fix the geogrid in place.
5. Fill and Compact: Cover the geogrid with aggregate or soil, then compact to achieve optimal performance.
6. Inspect and Finalize: Verify alignment and tension during the installation process.
